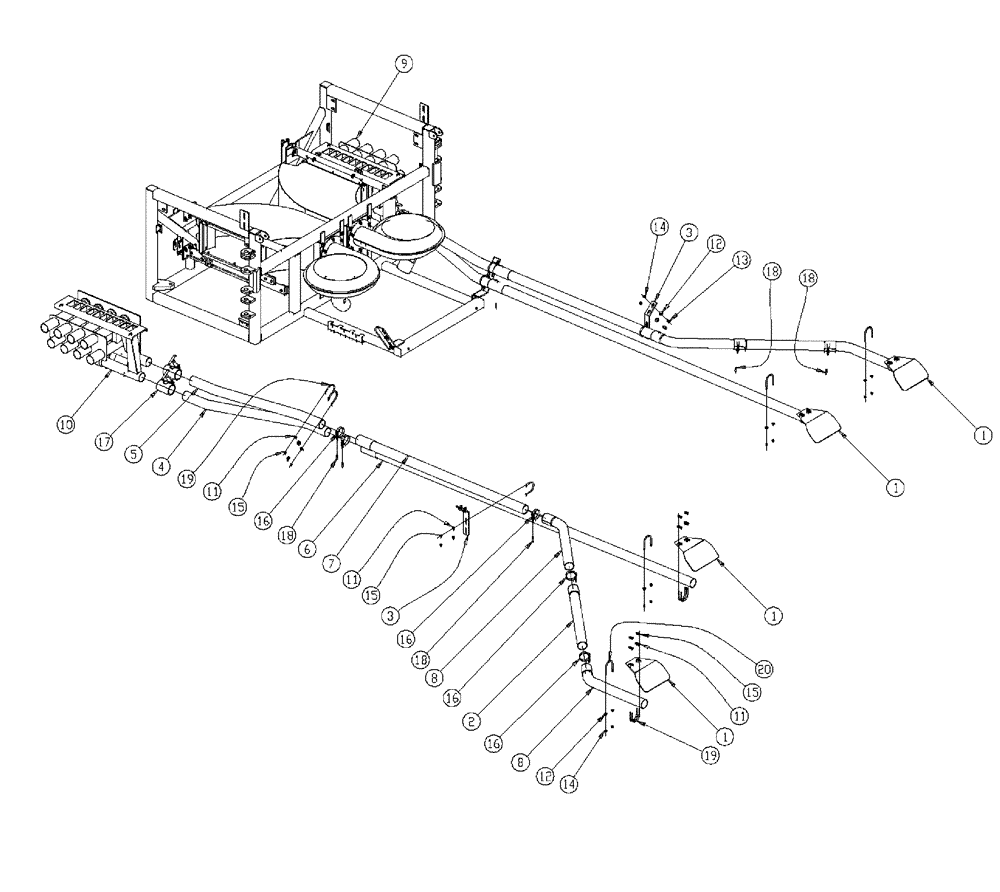

Запчасти Case IH 438 (09-001) - TUBES GROUP, MID, 2.5 Boom Group

1

342226A1

DEFLECTOR

Assembly-Rear SS INS

4шт.

2

BN300746

TUBE

Swedged, 2.50 X 25.00

2шт.

3

BN300747

BRACKET

Tubes, Rear

2шт.

4

BN300749

TUBE

Formed, 2.5, 20~X41.25

2шт.

5

BN300750

TUBE

Formed, 2.5, 10~X41.25

2шт.

6

BN300755

RIGID TUBE

2.50 X 110.25

2шт.

7

BN300756

RIGID TUBE

2.50 X 54.00

2шт.

8

BN300794

TUBE

Formed, 2.5, 45 X 19.68

4шт.

9

BN303276

VENTURI

Group, MID, 2.5, RH

1шт.

10

BN303277

VENTURI

Group, MID, 2.5, LH

1шт.

11

BN50138

WASHER,1/4", SS

28шт.

12

BN50146

WASHER,3/8", Stainless

12шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

15

BN55359

LOCK NUT,1/4"-20, SS

28шт.

16

87271751

CLAMP

Hi-Torque

10шт.

17

BN67489

CLAMP,63.5mm ID

Pneumatic, 2.50

4шт.

18

BN68086

CAP

RND, Rubber, .25 ID x 1.00

10шт.

19

BN311494

U-BOLT

1/4-20 UNC, 2.5" SS

14шт.

20

BN21276

CLAMP

2 1/2" Muffler

4шт.
