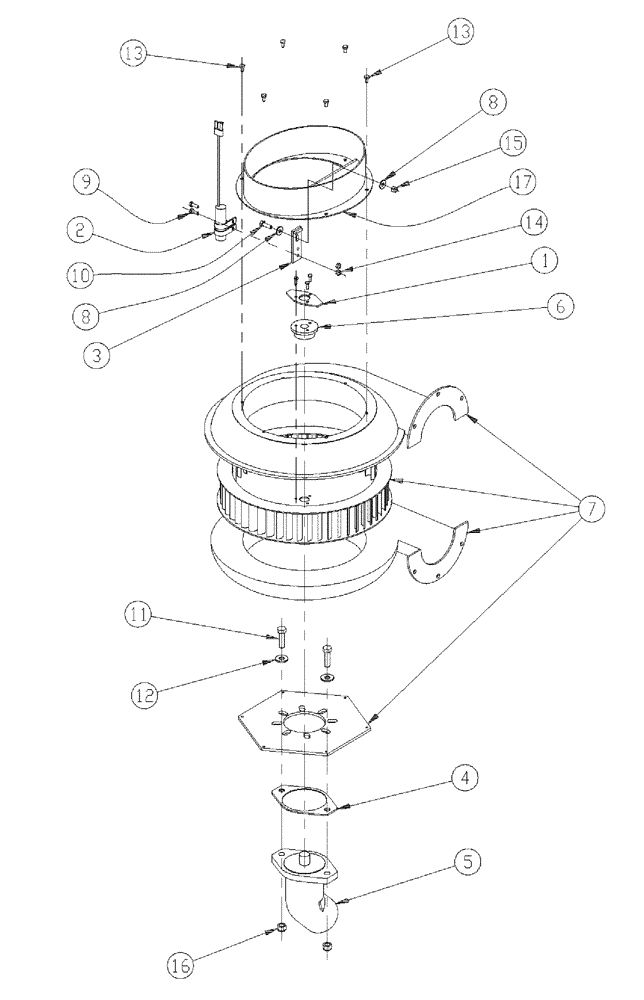

Запчасти Case IH 438 (08-015) - FAN GROUP, 6" CCW Boom Group

1

BN15736

PLATE

Sensor, 2 Lobe

1шт.

2

BN23315

SENSOR

1шт.

3

BN23453

MOUNTING PLATE

RPM Sensor

1шт.

4

BN23813

GASKET

.060" Polypropylene

1шт.

5

NSS

NOT SOLD SEPARAT

HYD MTR, .73 Rex White

1шт.

See Fig. 14-001

1шт.

6

BN35698

BUSHING

Taper 20 MM

1шт.

7

NSS

NOT SOLD SEPARAT

HP, 6 Inch, CCW

1шт.

See Fig. 08-016

1шт.

8

BN50142

WASHER,5/16", Stainless Steel

2шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

10

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

1шт.

11

BN50594

BOLT,1/2"-13 x 1.75", Stainless

2шт.

12

BN50595

WASHER,1/2", Stainless

2шт.

13

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

14

BN55359

LOCK NUT,1/4"-20, SS

2шт.

15

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

16

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

17

BN65860

TUBE

Cooler

1шт.
