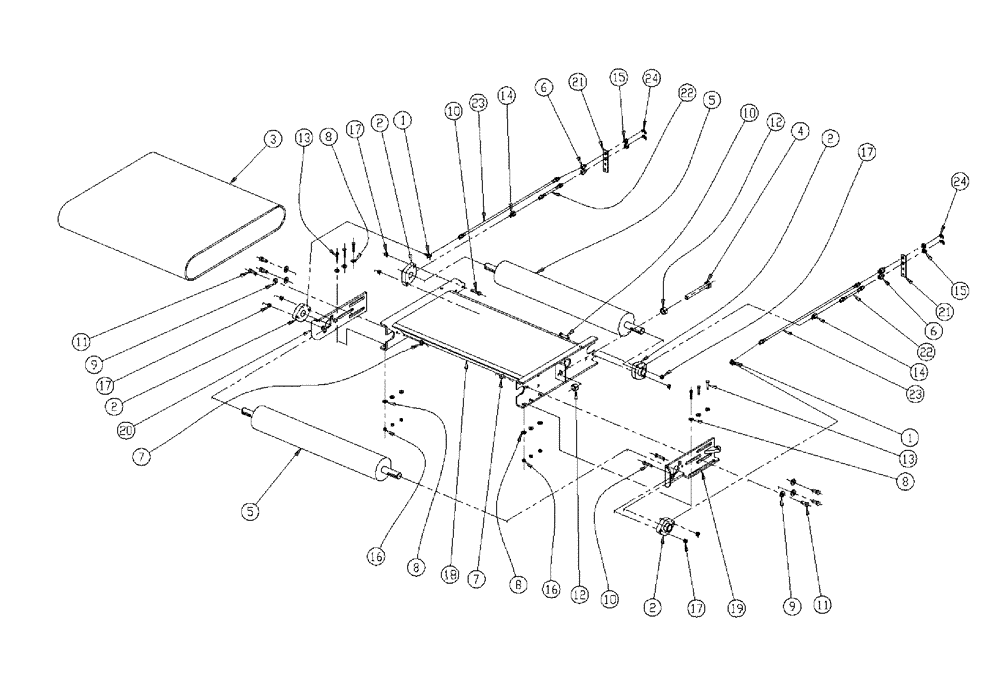

Запчасти Case IH 438 (08-011) - BELT CARTRIDGE GROUP, FLEX Boom Group

1

BN311142

ELBOW

1/4-28 UNFT x 1/8-27 NPTF 90

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

4шт.

3

BN15031

CONVEYOR BELT,26.50" W x 53.25" L

1шт.

4

BN35404

ADJUSTER

Takeup

2шт.

5

343499A1

PULLEY

Conveyor, Volcanized

2шт.

6

BN35805

ADAPTER

1/8 NPSM-NPTF

4шт.

7

BN50062

LOCK NUT,3/8"-16, Stainless Steel

6шт.

8

BN50138

WASHER,1/4", SS

12шт.

9

BN50146

WASHER,3/8", Stainless

6шт.

10

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

8шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

6шт.

12

BN50529

NUT

5/8-11, HH, SS

4шт.

13

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

6шт.

14

BN53567

ADAPTER

1/4"-28 X 1/8" NPTF

2шт.

15

BN53570

BHD LOCK NUT

4шт.

16

BN55359

LOCK NUT,1/4"-20, SS

6шт.

17

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

18

BN63524

FRAME

Floor & Roller

1шт.

19

BN63531

MOUNTING PLATE

Roller, LH

1шт.

20

BN63532

MOUNTING PLATE

Roller, RH

1шт.

21

BN67993

BRACKET

Grease Line, Conv

2шт.

22

BN67999

HOSE

Grease, 9"

2шт.

23

BN68186

HOSE

Grease, 32.00

2шт.

24

BN69951

CAP

Grease

4шт.
