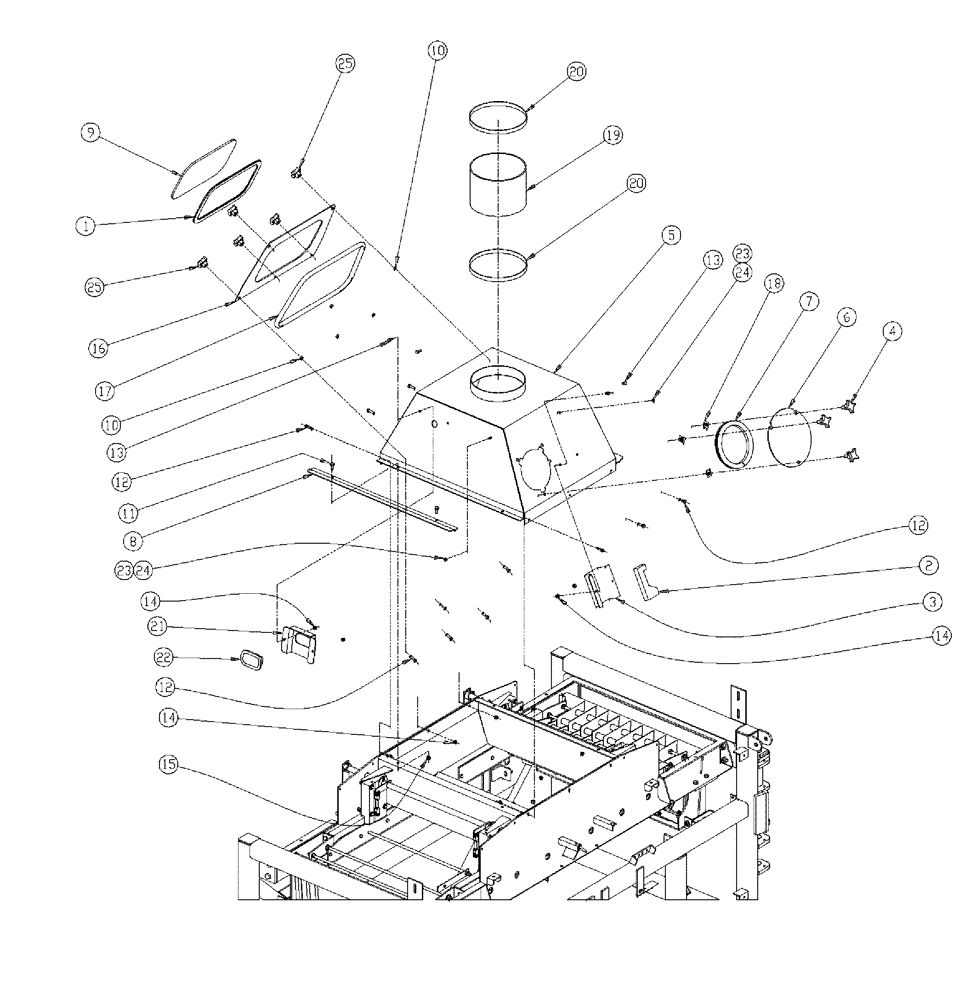

Запчасти Case IH 438 (08-007) - HOPPER GROUP, FLEX Boom Group

1

84167814

RUBBER SEAL

Conveyor Access

1шт.

2

BN23002

SENSOR

Low Hopper - DJ100

1шт.

3

BN313507

MOUNTING PLATE

Sensor

1шт.

4

BN29392

KNOB

3" With 3/8"-16 Female Thread

3шт.

5

BN306985

HOPPER

Flex

1шт.

6

BN306988

COVER

Hopper Access

1шт.

7

BN306989

SEAL

Cover, Hopper Access

1шт.

8

BN306990

STRAP

Cover Holddown

2шт.

9

87265980

WINDOW

Hopper 12" x 8"

1шт.

10

BN50054

NUT,1/4"-20, SS

5шт.

11

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

12

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

11шт.

13

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

14

BN55359

LOCK NUT,1/4"-20, SS

15шт.

15

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

16

BN63535

COVER

Hopper Access

1шт.

17

BN68012

SEAL

Cover, Conv Access

1шт.

18

BN68832

CLIP

J-Type, 3/8-16

3шт.

19

BN69181

HOSE

8" ID x 6.00, Flexible

1шт.

20

BN85062

HOSE CLAMP

8" Bridge

2шт.

21

BN310644

MOUNTING PLATE

Bin Lights

1шт.

22

BN310648

LIGHT

1шт.

23

BN9990114

STRAP

"Eye Ty" 06205 3M

2шт.

24

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

25

BN313479

KNOB

1/4-20 SS Insert

5шт.
