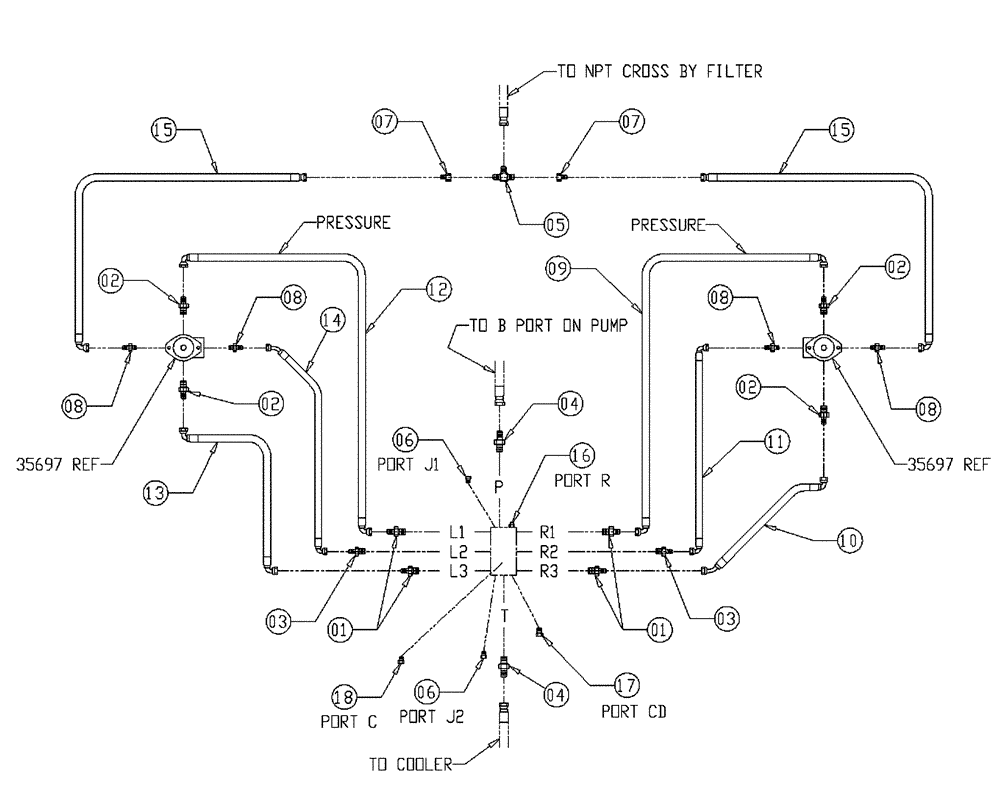

Запчасти Case IH 437 (06-017) - FAN LOOP FITTING Hydraulic Plumbing

1

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

2

BN444001

FITTING

Adaptor, 37 Flare 12-12

4шт.

3

BN444008

FITTING

Adapter - 37° Flare 10 - 08

2шт.

4

BN51590

FITTING

Adaptor, Straight, 37 Flare x 1.31 OR

2шт.

5

BN52289

HYD CONNECTOR

T JIC 1-1/16-12 Male

1шт.

6

BN53991

PLUG

Hex O-Ring 7/16-20

2шт.

7

BN53715

REDUCER

1-1/16"-12 x 3/4-16 JIC

2шт.

8

BN60440

ADAPTER

Straight O-Ring

4шт.

9

BN66685

HOSE

3/4 X 29, 12JIC-12 JIC

1шт.

10

BN66686

HOSE

3/4 X 25, 12 JIC-12 JIC

1шт.

11

BN66688

HOSE

1/2 X 36, 8 JIC-8 JIC

1шт.

12

BN66689

HOSE

3/4 X 40, 12 JIC-12 JIC

1шт.

13

BN66690

HOSE

3/4 X 60, 12 JIC-12 JIC

1шт.

14

BN66693

HOSE

1/2 X 41, 8 JIC-8 JIC

1шт.

15

BN55252

HOSE

1/2 X 19.5, 8 JIC-8 JIC

2шт.

16

BN35824

CARTRIDGE

Charge Relief

1шт.

17

BN21243

PLUG

Hex, 7/8"-14, O-Ring

1шт.

18

BN68085

PLUG

10 ORBP, Hex Socket

1шт.
