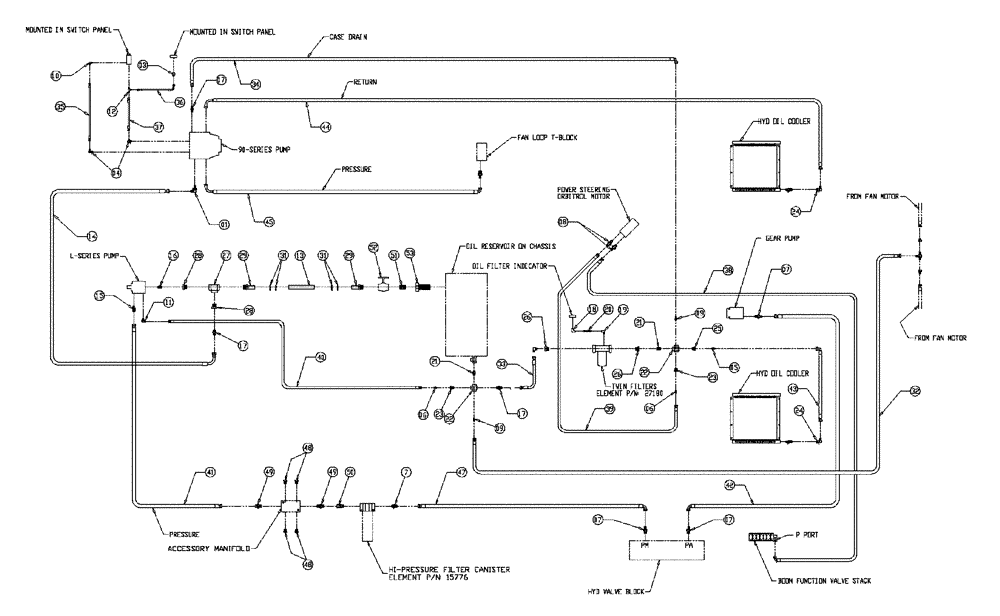

Запчасти Case IH 437 (06-012) - FITTING GROUP, TITAN, 4 WL, REAR Hydraulic Plumbing

1

BN52337

FITTING

90, OR 37 Flare, 20-20

1шт.

3

BN21424

ADAPTER

Female, PI, 37º, Flare

1шт.

4

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

5

BN441004

FITTING

Pipe 37 Flare

1шт.

6

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

7

BN444001

FITTING

Adapter, O-Ring 37 Flare 12-12

5шт.

8

BN444004

FITTING

O-Ring 37 Flare

2шт.

g

BN51531

Adapter, 1&1/4 NPTF x 12 JIC

2шт.

10

BN51591

ELBOW

90° - O-Ring 37 FL 7/16

1шт.

11

BN53594

FITTING

Adapter, 90 Degree, OR X 37 JIC

1шт.

12

BN55219

ADAPTER

T, 40 RB 4 JIC-4 JIC

1шт.

13

BN55310

2 X 64

1шт.

14

BN54289

HOSE

1.25 X 50, 20 JIC 20 JIC

1шт.

15

BN55313

ADAPTER

200 RBP 12 JIC

1шт.

16

BN55324

ADAPTER

1.25 NPT M, 20 ORB M

1шт.

17

BN55325

ADAPTER

1 1/4" NPT x 1 5/8"-12 JIC

2шт.

18

BN72027

1/8 X 90 Degree BI

1шт.

19

BN72028

ELBOW

1/8 x 90º street

1шт.

20

BN72033

Nipple 1/8" NPT x 4.0

1шт.

21

BN72330

LUBE NIPPLE

LUBRICATOR 1&1/4 NPT Close BI

2шт.

22

BN72343

FITTING

Cross, 1-1/4" NPT

2шт.

23

BN72348

1&1/4 X 1/2 Black

2шт.

24

BN55350

ADAPTER

16 JIC Female, Swivel, 90

2шт.

25

BN72350

Red, 1.25 NPTM X 1 NPTF

1шт.

26

BN72411

Bush-Red 1&1/2" X 1&1/4

2шт.

27

BN72461

TEE

2" Black

1шт.

28

BN72470

FITTING

BR, 2X1&1/4 (11-1/2)

2шт.

29

BN72473

HOSE

2" NPT x 2" Hose Id

2шт.

31

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

4шт.

32

BN67175

HOSE

3/4 X 227, 12 JIC-12 JIC

1шт.

33

BN55241

HOSE

1.25 X 23, 20 JIC-20 JIC

1шт.

34

BN55242

3/4 X 170, 12 JIC-12 JIC

1шт.

35

BN55268

HOSE

1/4 X 148, 4 JIC - 4JIC

1шт.

36

BN55269

HOSE

1/4 X 18, 4 JIC-4 JIC

1шт.

37

BN300774

1/4 X 160, 4 JIC-4 JIC

1шт.

38

BN67176

HOSE

1/2 X 336, 8 JIC-8 JIC

1шт.

39

BN55299

HOSE

1/2 X 102, 8 JIC-8 JIC

1шт.

40

BN55312

HOSE

1/2 X 108, 8 JIC-8 JIC

1шт.

41

BN55375

3/4 X 114, 12 JIC-12 JIC

1шт.

42

BN67178

HOSE

3/4 X 259, 12 JIC-12 JIC

1шт.

43

BN67179

HOSE

1 X 230, 16 JIC-16 JIC

1шт.

44

BN67180

1 X 306, 16 JIC-16 Split FL

1шт.

45

BN67181

Hose 1 X 295, 16 JIC-16 Split FL

1шт.

47

BN67531

HOSE

3/4 X 148, 12 JIC-12 JIC

1шт.

48

BN21243

PLUG

Hex, 7/8"-14, O-Ring

4шт.

49

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

2шт.

50

BN57224

FITTING

Adapter, 1-1/16-12 OR, JIC

1шт.

51

BN72450

LUBE NIPPLE

LUBRICATOR 2 X close BI

1шт.

52

BN2201123

Gate 2" 125 LB

1шт.

53

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

1шт.
