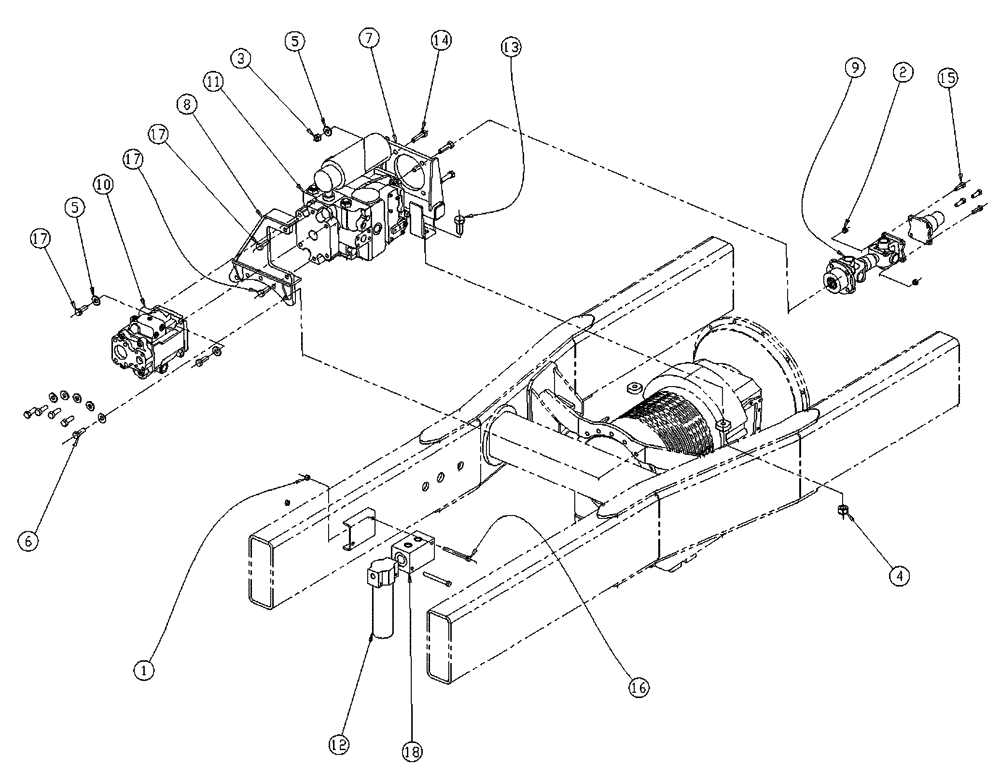

Запчасти Case IH 437 (06-011) - PUMP GROUP, FLEX, 4375, MID Hydraulic Plumbing

1

BN1470404C

LOCK NUT

NC 3/8-16 Flex Lock

2шт.

2

BN1470405C

NUT

NC 7/16-14 Flex Lock

4шт.

3

BN1470406C

LOCK NUT

NC 1/2-13 Flex Lock

4шт.

4

BN1470409C

LOCK NUT

NC 3/4-10 Flex Lock

2шт.

5

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

6

BN300377

BOLT

M12 1.75 X 70, HH, 10.9

5шт.

7

BN302794

BRACKET, SUPPORTING

Front Mount, 90 + 45

1шт.

8

BN302795

Rear Mount, 90 + 45

1шт.

9

BN302938

DRIVEN SHAFT

1350, SC, 14 T, PF

1шт.

10

86986504

PUMP

Pressure Comp-60 cc

1шт.

See Fig. 07-006

1шт.

11

BN303082

PUMP

90 SER, CW, Auxiliary C-Pad 14 T

1шт.

See Fig. 07-005

1шт.

12

BN35690

FILTER

Fairy-Arlon, HI P

1шт.

See Fig. 07-007

1шт.

13

BN50330

BOLT

3/4-10 X 1.5, HH, 5, BK

2шт.

14

BN50378

BOLT

1/2-13 X 2, HH, 8, BK

4шт.

15

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

4шт.

16

BN50801

BOLT

3/8-16 X 4, HH, G5

2шт.

17

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

6шт.

18

BN67505

MANIFOLD

Meter Filter

1шт.
