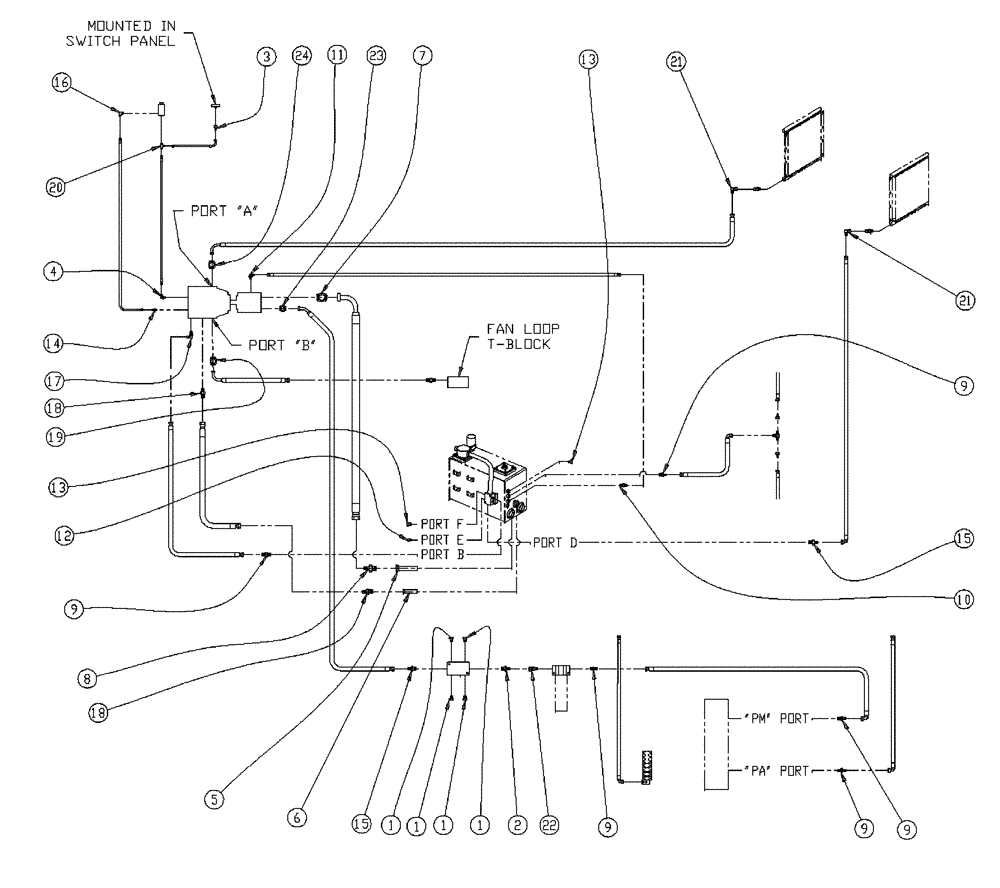

Запчасти Case IH 437 (06-010) - FITTING GROUP, FLEX, 4375, MID Hydraulic Plumbing

1

BN21243

PLUG

Hex, 7/8"-14, O-Ring

4шт.

2

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

1шт.

3

BN21424

ADAPTER

Female, PI, 37º, Flare

1шт.

4

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

1шт.

5

BN303527

FILTER STRAINER

48 MB x 32 FB, 100

1шт.

6

BN303528

STRAINER ASSY.

32 MB x 20 FB, 100

1шт.

7

BN303630

REPAIR KIT

Split Flange, 2, Code 61

1шт.

8

BN303887

32 ORBP 32 JIC

1шт.

9

BN444001

FITTING

Adapter, 37 Flare 12-12

5шт.

10

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

1шт.

11

BN445009

ADAPTER

90 Degree, OR x 37 JIC

1шт.

12

BN446025

PLUG

Hex O-Ring 3/4-16

1шт.

13

BN446047

O-Ring, #12, Hex

2шт.

14

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

1шт.

15

BN51590

FITTING

Adapter, Straight, 37 FL x 1.31 OR

2шт.

16

BN51591

ELBOW

90° - O-Ring 37 FL 7/16

1шт.

17

BN51621

FITTING

Elbow 90, O-Ring 37 Flare

1шт.

18

BN52040

ADAPTER

Fitting, OR x JIC 1-5/8-12

2шт.

19

BN52315

KIT

1" Split Flange Code 62

1шт.

20

BN55219

ADAPTER

T, 40 RB 4 JIC-4 JIC

1шт.

21

BN55350

ADAPTER

16 JIC, Female Swivel, 90

2шт.

22

BN57224

FITTING

Adapter, 1-/16-12 OrR, JIC

1шт.

23

BN67548

REPAIR KIT

Split Flange Code 61

1шт.

24

BN302793

REPAIR KIT

Split Flange, 62-61

1шт.
