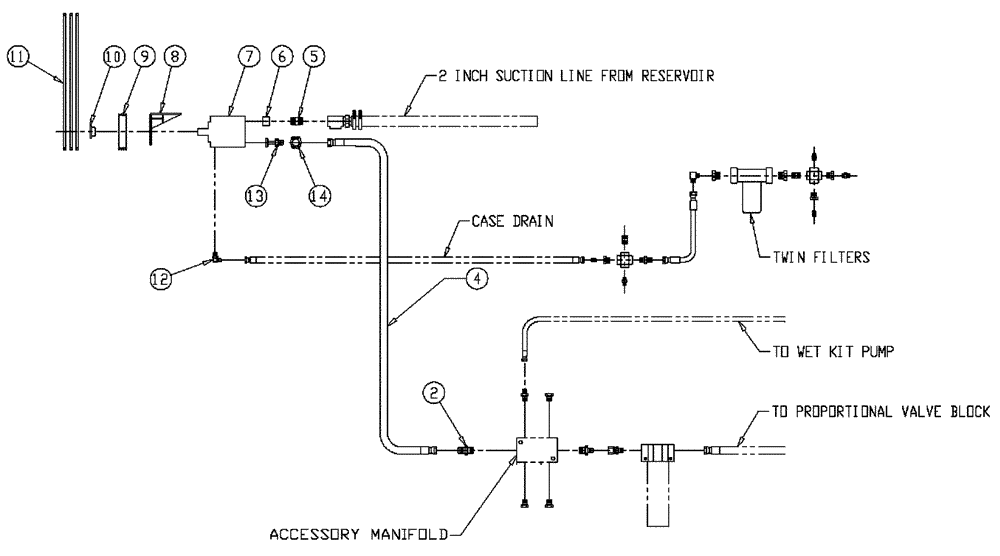

Запчасти Case IH 437 (06-007) - HYD GROUP TITAN, 3 BIN, WET KIT Hydraulic Plumbing

2

BN51590

FITTING

Adapter, Straight, 37 Flare x 1.31 OR

1шт.

4

BN55374

1 X 114, 16 JIC-16 JIC

1шт.

5

BN72450

LUBE NIPPLE

LUBRICATOR 2 X close BI

1шт.

6

BN67550

Flanged BLK, 2" Code 61, 2 NPF

1шт.

7

BN67322

PUMP

Press COMP, 45 Series

1шт.

8

BN302006

MOUNTING PLATE

Pump, C Pad

1шт.

8

BN67321

BRACKET, SUPPORTING

Pump Mount, SAE C

1шт.

9

BN67551

SHEAVE

9.0 PD, A, 3 Groove

1шт.

10

BN67552

BUSHING

SK1 1/4 X 5/16 Key

1шт.

11

BN302825

A57, Raw Edge Only

3шт.

11

BN66683

BELT

A55 Raw Edge Only

3шт.

12

BN445009

ADAPTER

90 Degree, OR x 37 JIC

1шт.

13

BN67549

ADAPTER

16 O-Ring Flange 16 JIC M

1шт.

14

BN67548

REPAIR KIT

Split Flange Code 61

1шт.
