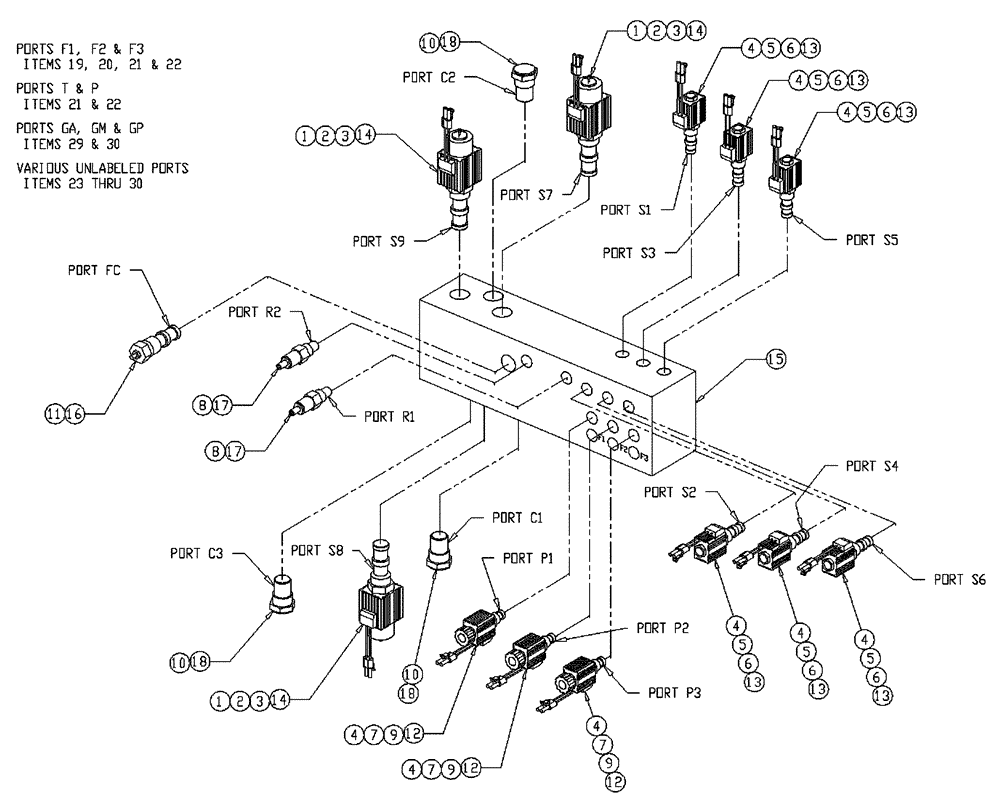

Запчасти Case IH 437 (07-016) - VALVE BLOCK, HYD DELUXE Hydraulic Components

1

BN65591

COIL

Fauver Auger Block

3шт.

2

BN65592

SPOOL

Fauver Auger Block

3шт.

3

BN65593

CARTRIDGE

Assembly, Fauver Auger Block

3шт.

4

BN65594

COIL

Fauver Meter Block

9шт.

5

BN65595

SPOOL

Fauver Meter BLK

6шт.

6

BN65596

CARTRIDGE

Cart Assembly, Fauver Meter BLK

6шт.

7

BN65597

CARTRIDGE

Cart Assembly, Fauver Proportional

3шт.

8

BN67012

BLOCK

Relief, Fauver

2шт.

9

BN67013

SPOOL

Prop Valve, Fauver Block

3шт.

10

BN67205

CHECK VALVE

Fauver Block

3шт.

11

BN67372

CONTROL

Flow, Sterling

1шт.

12

BN68198

SEAL KIT

Proportional

3шт.

13

BN68199

SEAL KIT

Solenoid Valve

6шт.

14

BN68200

SEAL KIT

Solenoid Valve

3шт.

15

BN68203

BLOCK

Valve Body

1шт.

16

BN68204

SEAL KIT

Flow Regulator

1шт.

17

BN68205

SEAL KIT

Relief Valve

2шт.

18

BN68206

SEAL KIT

Check Valve

3шт.

19

BN67203

FILTER

Disc Retainer, Fauver

3шт.

20

BN67204

FILTER

Disc, Fauver Block

3шт.

21

9841223

PLUG,1-1/16" - 12 ORB

5шт.

22

BN98017

O-RING

SAE-12 Buna N

5шт.

23

BN68085

PLUG

10 ORBP, Hex Socket

1шт.

24

BN98062

O-RING

SAE #10 (Bunan)

1шт.

25

BN68095

PLUG

8 ORBP, Hex Socket

11шт.

26

BN98018

O-RING

SAE - 8 Buna N

11шт.

27

BN68742

6 ORBP, Hex Socket

4шт.

28

BN98019

O-RING

SAE - 6 Buna N

4шт.

29

BN68741

4 ORBP, Hex Socket

13шт.

30

BN98094

O-RING

#4

13шт.
