(05-001) - EXTENSION GROUP, 3 MID

Запчасти Case IH 437 (05-001) - EXTENSION GROUP, 3 MID Extensions & Mount Group

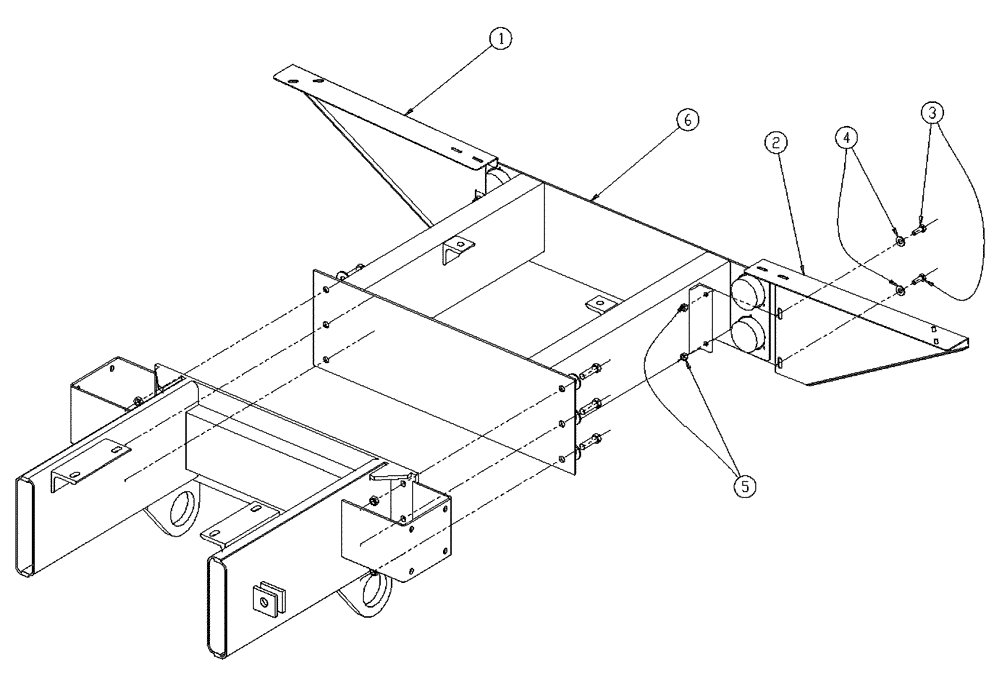

Схема запчастей Case IH 437 - (05-001) - EXTENSION GROUP, 3 MID Extensions & Mount Group
2
3
4
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN300751

SUPPORT TUBE

RH

1шт.

2

BN300752

SUPPORT TUBE

LH

1шт.

3

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

4

BN50595

WASHER,1/2", Stainless

4шт.

5

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

6

BN303623

Frame Extension, Group, 35"

1шт.
