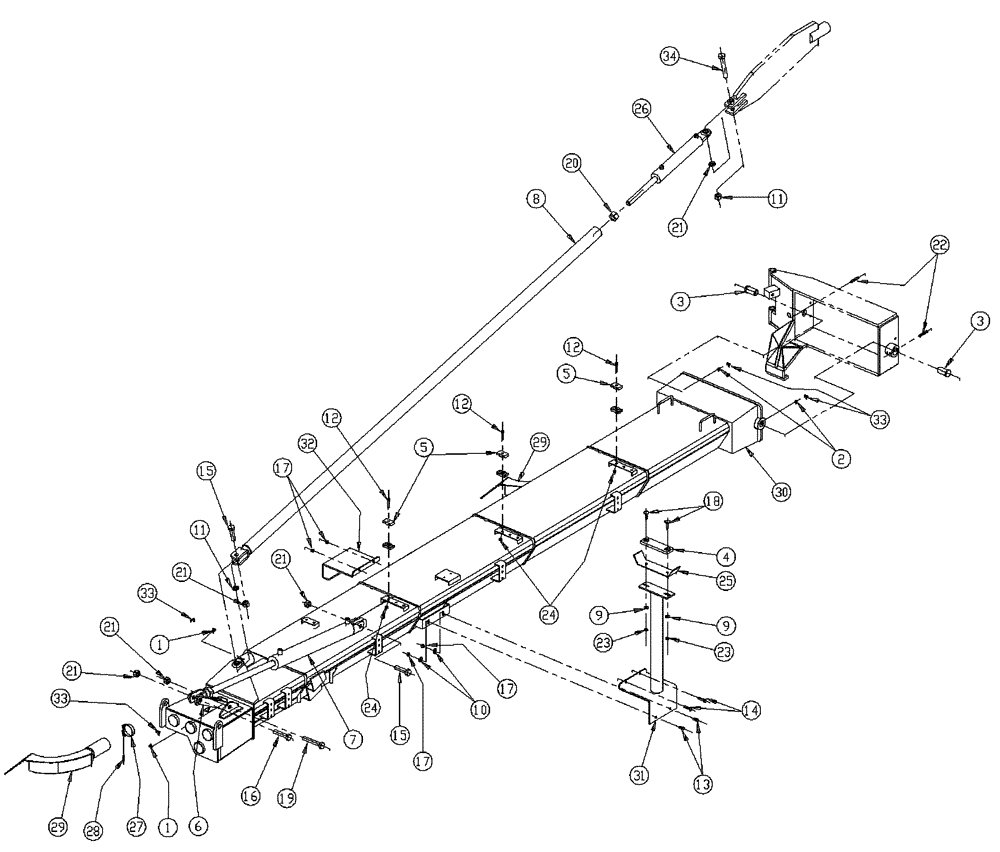

Запчасти Case IH 437 (04-004) - BOOM GROUP, 2.5 TUBES, INNER Boom Group

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

4шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

4шт.

3

BN65661

PIN,31.75mm OD x 66.8mm L

1.50 Diameter x 2.88

2шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

2шт.

5

BN29779

CLAMP

Dual, 1/2" Tube

6шт.

6

BN35558

ARM

control link

2шт.

7

NSS

NOT SOLD SEPARAT

2.5" X 20 "

2шт.

See Fig. 06-004

1шт.

8

BN35892

ARM

Suspension

2шт.

9

BN50141

WASHER

5/16, FW, G5

4шт.

10

BN50146

WASHER,3/8", Stainless

4шт.

11

BN50178

WASHER

1.25 OD x .75 ID x 10 GA

4шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

6шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

14

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

15

BN50333

BOLT

3/4-10 X 3, HH, G5

4шт.

16

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

2шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

18

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

4шт.

19

BN50943

BOLT

3/4-10 X 4.5, HH, G5

2шт.

20

425-1516

JAM NUT,Jam, 1"-14, G5

2шт.

21

BN50969

NUT

3/4-10, NLN, G5

10шт.

22

BN55198

ROLL PIN

3/8 X 2-1/2, SS

4шт.

23

BN55360

LOCK NUT

5/16"-18, NLN, G5

4шт.

24

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

25

BN65473

SUPPORT

Boom Tip

2шт.

26

NSS

NOT SOLD SEPARAT

Cylinder, 2.5 X 10, W/Uniball

2шт.

See Fig. 06-006

1шт.

27

87271751

CLAMP

Hi-Torque

8шт.

28

BN68086

CAP

Round, Rubber, .25 ID x 1.00

8шт.

29

BN68396

DEFLECTOR

Assembly, 2.5, RH

4шт.

30

BN69193

BOOM

Inner, 2.50, RH

1шт.

31

BN69278

SUPPORT

Tip-Over

2шт.

32

BN69280

SUPPORT

Tip-Over

2шт.

33

BN69951

CAP

Grease

8шт.

34

BN55382

BOLT

3/4-10 X 5, HH, G5

2шт.
