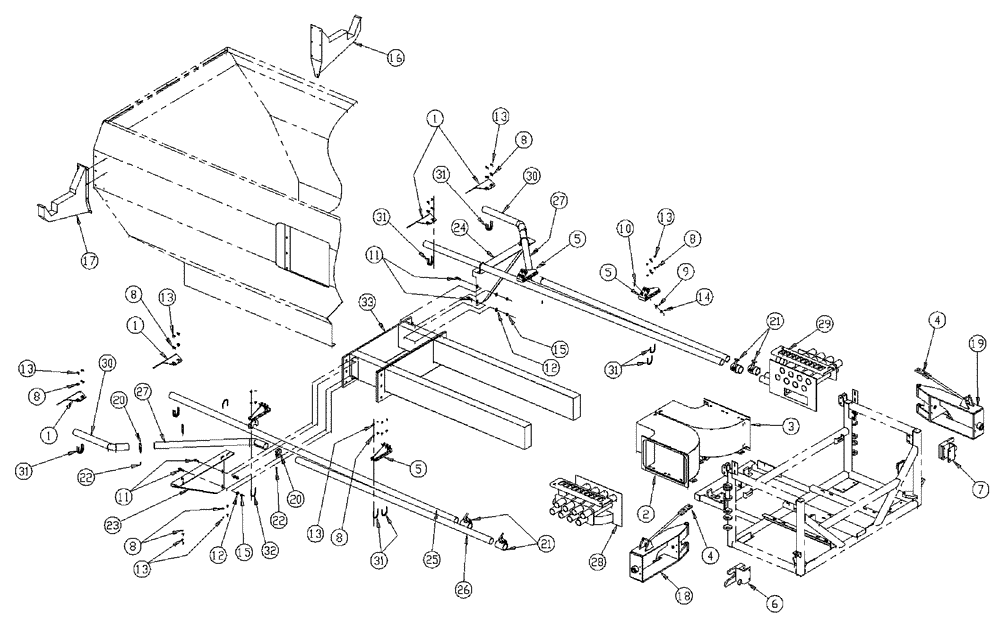

Запчасти Case IH 437 (04-002) - BOOM GROUP, 2.5 TUBES MID Boom Group

1

342226A1

DEFLECTOR

Assembly-Rear SS INS

4шт.

2

BN35508

Airway, RH, Mid

1шт.

3

BN35509

Airway, LH, Mid

1шт.

4

BN35642

SUPPORT

Hinge, Mid

2шт.

5

BN35718

SUPPORT

Rear Tubes

4шт.

6

BN35882

SUPPORT

Hinge, Mid, RH

1шт.

7

BN35883

SUPPORT

Hinge, Mid, LH

1шт.

8

BN50138

WASHER,1/4", SS

36шт.

9

BN50142

WASHER,5/16", Stainless Steel

16шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

16шт.

11

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

12

BN50595

WASHER,1/2", Stainless

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

36шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

16шт.

15

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

16

BN65238

SUPPORT

Mid, LH

1шт.

17

BN65239

SUPPORT

Mid, RH

1шт.

18

BN65724

HINGE

Boom, Mid, RH

1шт.

19

BN65725

HINGE

Boom, Mid, LH

1шт.

20

87271751

CLAMP

Hi-Torque

4шт.

21

BN67489

CLAMP,63.5mm ID

Pneumatic, 2.50

4шт.

22

BN68086

CAP

Round, Rubber, .25 ID x 1.00

4шт.

23

BN68398

TUBE

Mid, RH

1шт.

24

BN68399

TUBE

Support, Mid, LH

1шт.

25

BN69283

TUBE

2.5 OD x 16 GA x 150.00

2шт.

26

BN69284

TUBE

2.5 OD x 16 GA x 100.00

2шт.

27

BN69292

TUBE

2.50, 45 X 37.75

2шт.

28

BN300326

VENTURI

Group, 2.5, RH

1шт.

29

BN300327

VENTURI

Group, 2.5, LH

1шт.

30

BN69298

TUBE

2.50, 45 X 17.75

2шт.

31

87266747

U-BOLT

1/4"-20 x 2.5 ID x 3"

16шт.

32

BN21276

CLAMP

2 1/2" Muffler

2шт.

33

BN8171009

Frame Extension (18") Titan

1шт.
