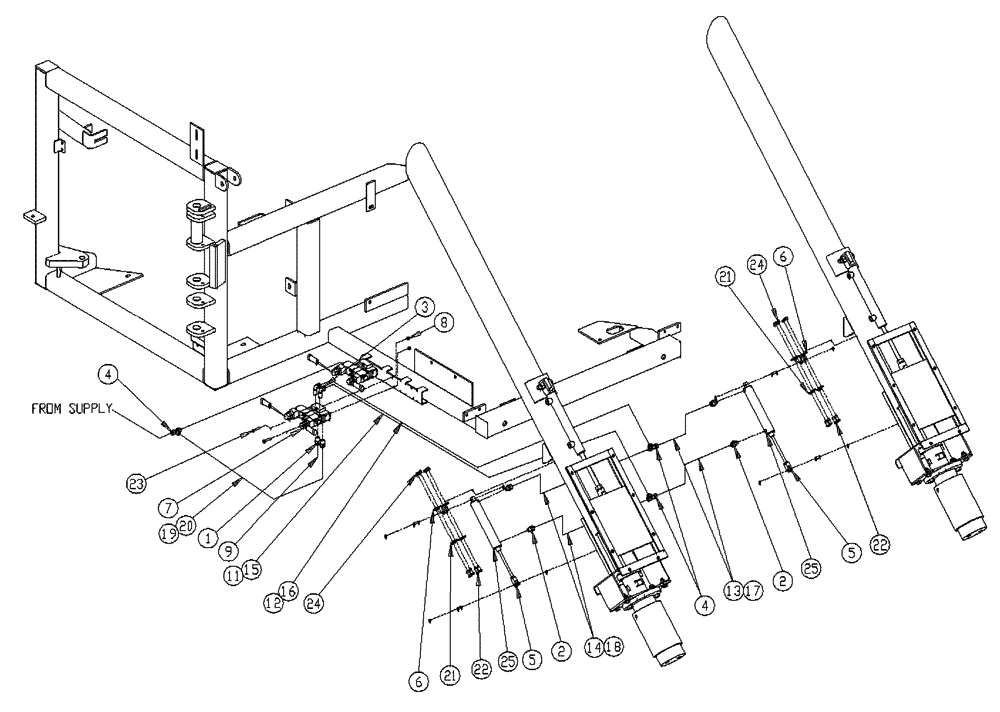

Запчасти Case IH 437 (02-010) - PNEUMATIC GROUP, 4 INCH AUGER Bin Group

1

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

3

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

4

BN2399408

UNION TEE

Tube UTC140

3шт.

5

BN300254

KIT

Clevis, .31 Rod

2шт.

6

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

2шт.

7

BN304833

SOLENOID VALVE

Air, Double Solenoid

1шт.

See Fig. 01-016

1шт.

7a

84269276

SEAL

Pressure, Pilot Valve

1шт.

8

BN303136

NUT

10-32, NLN, G5

2шт.

9

BN303143

Air, 1/4 X 12", Black

1шт.

11

BN303242

Air, 1/4" X 42", Black

1шт.

12

BN303243

Air, 1/4" X 38", Black

1шт.

13

BN303244

AIR HOSE,15.00"

1/4", Black

2шт.

14

BN303245

AIR HOSE,7.00"

1/4", Black

2шт.

15

BN303246

Plastic, 1/4" X 42"

1шт.

16

BN303247

Plastic, 1/4" X 38"

1шт.

17

BN303248

SLEEVE

Plastic, 1/4" X 15"

2шт.

18

BN303249

SLEEVE

Plastic, 1/4" X 7"

2шт.

19

BN303257

AIR HOSE,33.00"

1/4", Black

1шт.

20

BN303258

Plastic, 1/4" X 33"

1шт.

21

BN50138

WASHER,1/4", SS

8шт.

22

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

23

BN50926

10-32 X 1.25, PHR, G5

2шт.

24

BN55359

LOCK NUT,1/4"-20, SS

8шт.

25

BN68384

CYLINDER,Double Acting, 7.87mm Rod, 127mm Stroke

1.06 X4, Air

2шт.
