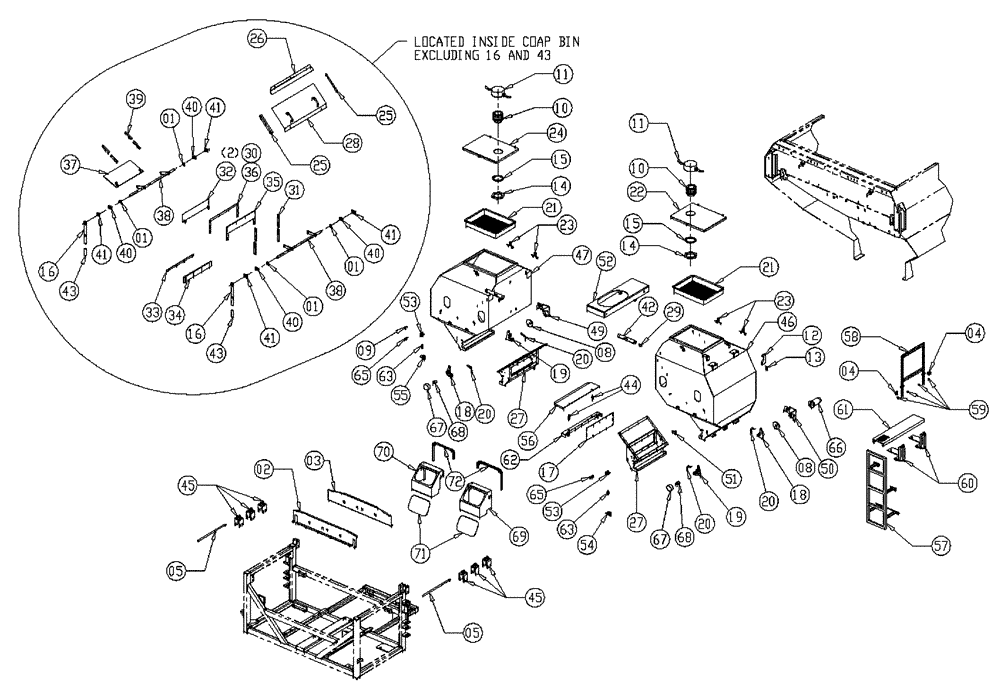

Запчасти Case IH 437 (02-007) - TRIPLE BIN GROUP Bin Group

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

8шт.

2

BN15711

CONV, Outside, W/CO-AP

1шт.

3

BN15712

CONV, Inside, W/CO-AP

1шт.

4

BN15717

PIN

Snap, 1/4" x 1 3/4"

2шт.

5

BN15900

PIN

CO-AP Bin Pivot

2шт.

6

BN20260

CABLE

1/4" Cable

4шт.

7

BN20307

Cable 1/4 IN

4шт.

8

BN21398A

COUPLING

Machined

4шт.

9

BN21652

PIN

3/8 x 2

8шт.

10

BN22944

ADAPTER

Male 4" Nyglass

2шт.

11

BN22945

CAP

4" DC Nyglass

2шт.

12

BN23002

SENSOR

Low Hopper - DJ100

2шт.

13

BN23298

COVER

14 GA 304 1.5 X 2.0

2шт.

14

BN23309

PIPE UNION NUT

4" Pipe Thread

2шт.

15

BN23310

GASKET

4"

2шт.

16

BN35411

HANDLE

Gate, Conveyor

4шт.

17

BN35576

COVER

Supply Bin Access

2шт.

18

BN35705

BEARING HOUSING

Valmar, Housing, LH

4шт.

19

BN35706

BEARING HOUSING

Valmar - Housing, RH

4шт.

20

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

8шт.

21

BN35740

SCREEN

CO-AP Bin

2шт.

22

BN35758

COVER

CO-AP Bin, RH

1шт.

23

BN35761

HINGE

CO-AP Bin Cover

4шт.

24

BN35764

COVER

CO-AP Bin, LH

1шт.

25

BN35772

SIDE PLATE

Divider, CO-AP Bin

4шт.

26

BN35773

DIVIDER

Top, CO-AP Bin

2шт.

27

BN35774

SHEET

Supplemental-Bolt-On

2шт.

28

BN35779

COVER

Divider, CO-AP Bin

2шт.

29

BN35784

PIN

with hole, CO-AP Bin

2шт.

30

BN35785

SLIDE

Vert, CO-AP Gate

4шт.

31

BN35786

LINK

CO-AP Bin Gate

8шт.

32

BN35787

GATE ASSY

CO-AP Bin

2шт.

33

BN35788

SEAL

CO-AP Gates

4шт.

34

BN35789

SEAL

CO-AP Gates

2шт.

35

BN35790

COVER

CO-AP Bin Gate

2шт.

36

BN35791

SLIDE

Horizontal, CO-AP Gate

2шт.

37

BN35793

GATE ASSY

Supply Bin

2шт.

38

BN35796

SHAFT

Supply Gate

4шт.

39

BN35799

LINKAGE

Supply Gate

8шт.

40

BN35800

BUSHING

Shaft, Supply Gate

8шт.

41

BN35801

SEAL

Shaft, Supply Gate

8шт.

42

BN35857

MOUNTING PLATE

CO-AP Bin, Center

2шт.

43

BN65711

CAP

RECT, 1.25 X .162 X 4.00

4шт.

44

BN23023

PIN

Cover Tie Down

4шт.

45

BN35862

MOUNTING PLATE

CO-AP Bin, Frame

6шт.

46

BN35864

MOUNTING PLATE

CO-AP Bin RH

1шт.

47

BN35865

CO-AP Bin LH

1шт.

48

87265978

WINDOW

Co-Ap Bin

6шт.

49

BN35938

ARM

Torque, CO-AP RH

2шт.

50

BN35939

ARM

Torque, CO-AP LH

2шт.

51

BN35940

PIN

Torque Arm

2шт.

52

BN35961

SUPPORT

Mount, CO-AP Bin, Center

1шт.

53

BN65327

BRACKET

CO-AP Side Cover

4шт.

54

BN65330

BRACKET

LH, CO-AP Side Cover

1шт.

55

BN65331

BRACKET

RH, CO-AP Side Cover

1шт.

56

BN65334

COVER

Conveyor, W/CO-AP Bin

2шт.

57

BN65349

LADDER

CO-AP Bin

1шт.

58

BN65366

HANDRAIL

CO-AP Bin

1шт.

59

BN65378

SPACER

CO-AP Rail

4шт.

60

BN65379

MOUNTING PLATE

CO-AP Handrail

2шт.

61

BN65384

MOUNTING PLATE

Walkway-Plank, CO-AP Bin Wheel

1шт.

62

BN65423

COVER

CO-AP Bin

2шт.

64

BN300185

1/4 X 42.00, SS

2шт.

65

BN71007

CLIP,3/16" Hairpin

3/16" #8

18шт.

66

BN65718

HYDRAULIC MOTOR

Ross MG12

4шт.

67

BN95852

SENSOR

Application Rate D-J#CCS1

4шт.

68

BN22884

KIT

Adaptor

4шт.

69

BN66758

COVER

Wind, RH, CO-AP

1шт.

70

BN66759

COVER

Wind, LH, CO-AP

1шт.

71

87265980

WINDOW

Hopper 12" x 8"

2шт.

72

BN67438

SEAL

Weather, Wind Cover

2шт.
