(02-006) - VALVE BOX GROUP, DOUBLE W/AUGER

Запчасти Case IH 437 (02-006) - VALVE BOX GROUP, DOUBLE W/AUGER Bin Group

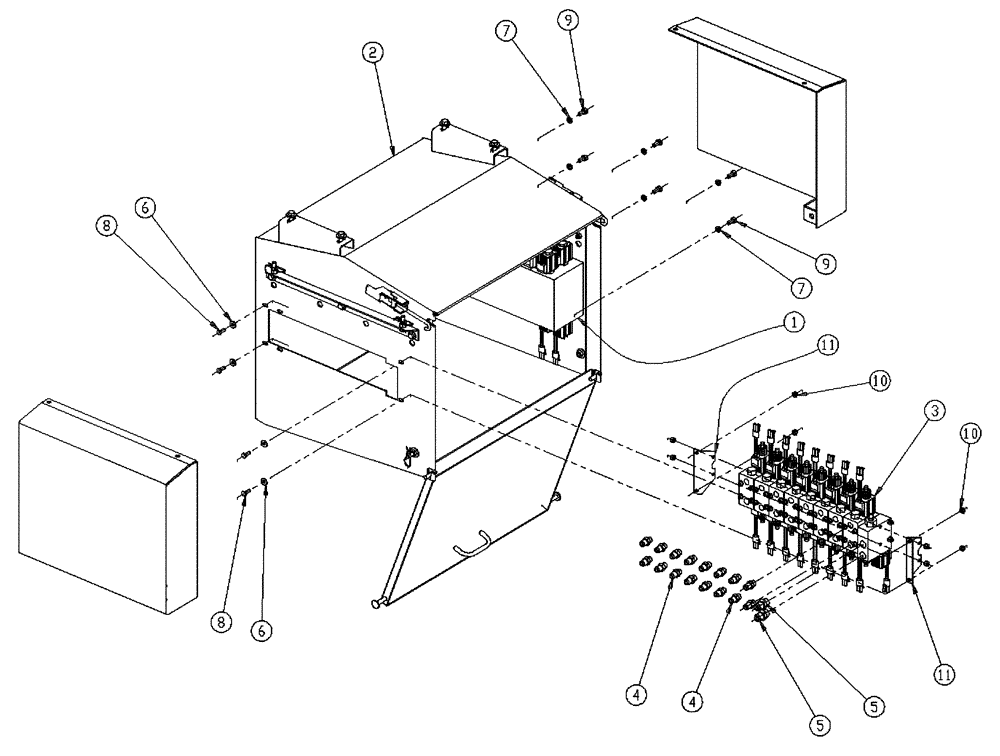

Схема запчастей Case IH 437 - (02-006) - VALVE BOX GROUP, DOUBLE W/AUGER Bin Group
5
7
1
11
11
5
8
6
3
9
6
10
9
4
4
7
2
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302883

HYDRAULIC VALVE

Block, Double W/Auger

1шт.

See Fig. 07-013

1шт.

2

BN302888

HYDRAULIC VALVE

Box Group

1шт.

See Fig. 01-006

1шт.

3

BN35709

HYDRAULIC VALVE

Waterman 8 Bank

1шт.

See Fig. 07-015

1шт.

4

BN444002

ADAPTER

O-Ring 37 Flare 06-06

16шт.

5

BN444004

FITTING

O-Ring 37 Flare

2шт.

6

BN50138

WASHER,1/4", SS

4шт.

7

BN50144

LOCK WASHER

5/16" SS Lock

6шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

9

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

10

BN55359

LOCK NUT,1/4"-20, SS

4шт.

11

BN67858

MOUNTING PARTS

Waterman Valve

2шт.

11a

BN71007

CLIP,3/16" Hairpin

3/16" #8

1шт.

Associated Part Of Mount, Waterman Valve, P/N BN67858

1шт.
