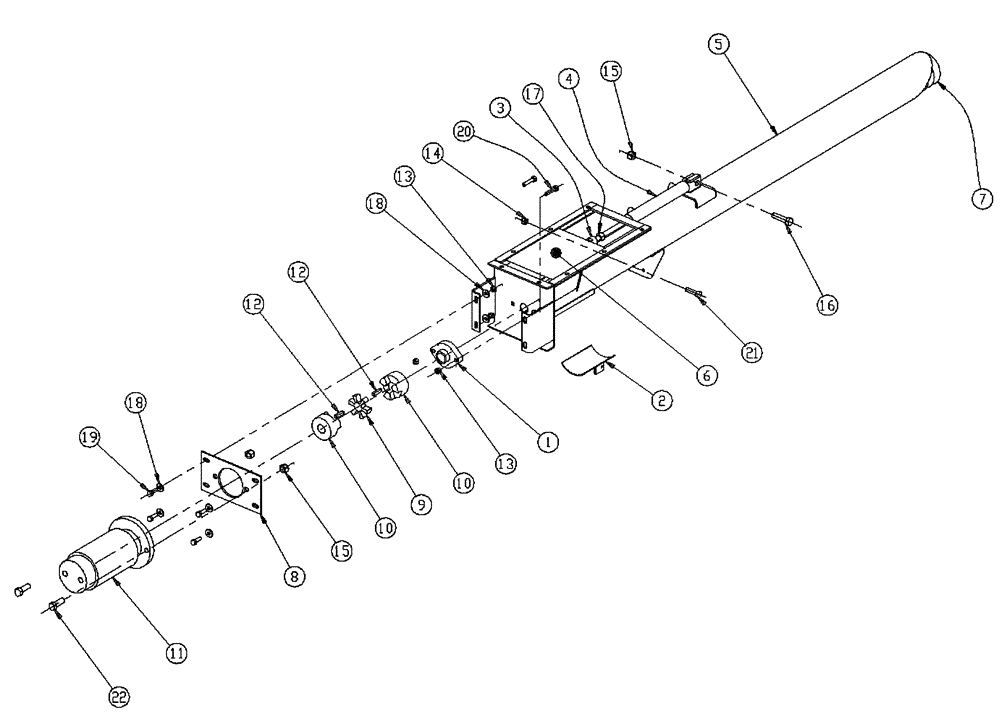

Запчасти Case IH 437 (02-005) - 4 INCH AUGER ASSY Bin Group

1

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

1шт.

2

BN302844

DOOR

Cleanout, 4"

1шт.

3

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

4

BN35701

CYLINDER

Hydraulic, 1.5" X 10"

1шт.

See Fig. 06-002

1шт.

5

BN35745

TUBE

Auxiliary Auger

1шт.

6

BN35756

GATE ASSY

Auxiliary Auger

1шт.

7

BN301743

AUGER

4"

1шт.

8

BN35935

PLATE

Motor Mount, Auxiliary Auger

1шт.

9

BN52250

COUPLING

Spider-Coupler-Hytrel Rub

1шт.

10

BN52251

Half - 1" Bore 1/4 KW

2шт.

11

BN306957

HYDRAULIC MOTOR

8 Cu In, 4" & 8" Augers

1шт.

12

BN23880

KEY

1/4" X 1/4" X 1.25

2шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

15

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

21

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

23

BN303219

AUGER

Pneumatic Group, 4"

1шт.
