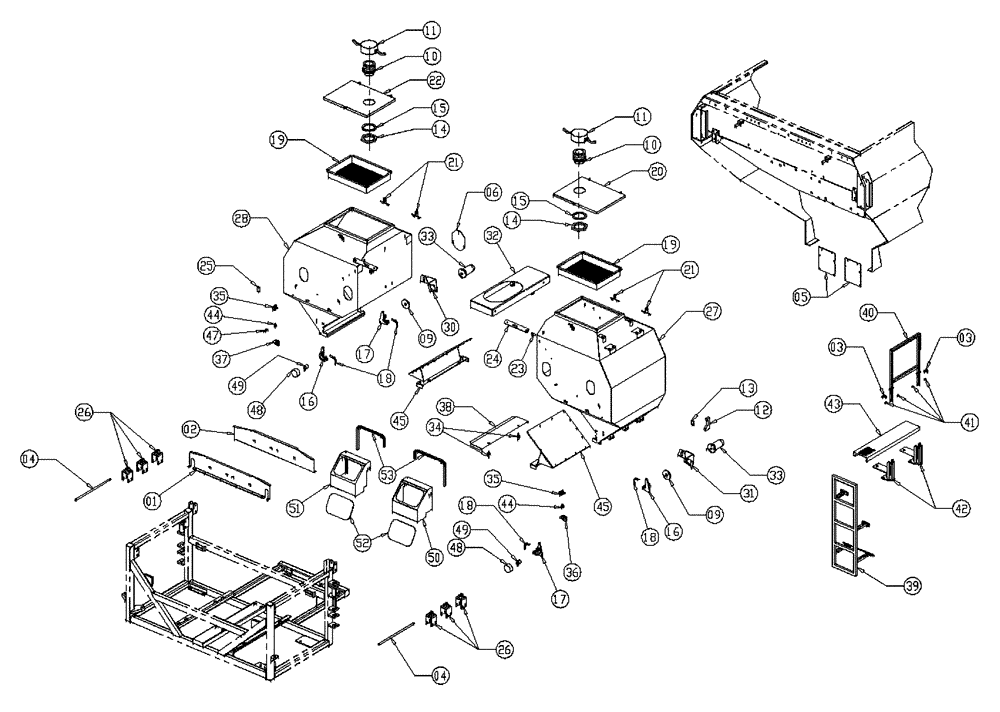

Запчасти Case IH 437 (02-002) - DOUBLE BIN GROUP Bin Group

1

BN15711

Panel-Conv,Outside,W/Coap

1шт.

2

BN15712

Panel-Conv,Inside,W/Coap

1шт.

3

BN15717

PIN

Snap, 1/4" x 1 3/4"

2шт.

4

BN15900

PIN

Coap Bin Pivot

2шт.

5

BN15930

COVER

4" Auger Hole

2шт.

6

BN15970

Cover-Auxil. Auger Hole

2шт.

7

BN20260

CABLE

Thimble-1/4" Cable

4шт.

8

BN20307

Cable 1/4 In

4шт.

9

BN21398A

COUPLING

Machined

2шт.

10

BN22944

ADAPTER

Male 4" Nyglass

2шт.

11

BN22945

CAP

4" DC Nyglass

2шт.

12

BN23002

SENSOR

Low Hopper - DJ100

2шт.

13

BN23298

COVER

14 GA 304 1.5 X 2.0

2шт.

14

BN23309

PIPE UNION NUT

4" Pipe Thread

2шт.

15

BN23310

GASKET

4"

2шт.

16

BN35705

BEARING HOUSING

Valmar, Housing, LH

2шт.

17

BN35706

BEARING HOUSING

Valmar Housing, RH

2шт.

18

BN35707

BEARING CAP

Valmar Latch, SS

4шт.

19

BN35740

SCREEN

CO-AP Bin

2шт.

20

BN35758

COVER

CO-AP Bin, RH

1шт.

21

BN35761

HINGE

CO-AP Bin Cover

4шт.

22

BN35764

COVER

CO-AP Bin, LH

1шт.

23

BN35784

PIN

with hole, CO-AP Bin

2шт.

24

BN35857

MOUNTING PLATE

CO-AP Bin, Center

2шт.

25

BN35859

COVER

Shaft Hole, Co-Ap Bin

8шт.

26

BN35862

MOUNTING PLATE

CO-AP Bin, Frame

6шт.

27

BN35864

MOUNTING PLATE

CO-AP Bin RH

1шт.

28

BN35865

CO-AP Bin LH

1шт.

29

87265978

WINDOW

Co-Ap Bin

6шт.

30

BN35938

ARM

Torque, CO-AP RH

1шт.

31

BN35939

ARM

Torque, CO-AP LH

1шт.

32

BN35961

SUPPORT

Mount, CO-AP Bin, Center

1шт.

33

BN65718

HYDRAULIC MOTOR

Ross MG12

2шт.

34

BN23023

PIN

Cover Tie Down

4шт.

35

BN65327

BRACKET

CO-AP Side Cover

4шт.

36

BN65330

BRACKET

LH, CO-AP Side Cover

1шт.

37

BN65331

BRACKET

RH, CO-AP Side Cover

1шт.

38

BN65334

COVER

Conveyor, W/CO-AP Bin

2шт.

39

BN65349

LADDER

CO-AP Bin

1шт.

40

BN65366

HANDRAIL

CO-AP Bin

1шт.

41

BN65378

SPACER

CO-AP Rail

4шт.

42

BN65379

MOUNTING PLATE

CO-AP Handrail

2шт.

43

BN65384

MOUNTING PLATE

Walkway-Plank, CO-AP Bin Wheel

1шт.

45

BN65434

Cover Sprocket, Supply Bin

2шт.

46

BN300185

1/4 X 42.00, SS

2шт.

47

BN71007

CLIP,3/16" Hairpin

Clip-3/16" #8

10шт.

48

BN95852

SENSOR

Application Rate D-J#CCS1

2шт.

49

BN22884

KIT

Adaptor

2шт.

50

BN66758

COVER

Wind, RH, CO-AP

1шт.

51

BN66759

COVER

Wind, LH, CO-AP

1шт.

52

87265980

WINDOW

Hopper 12" x 8"

2шт.

53

BN67438

SEAL

Weather, Wind Cover

2шт.
