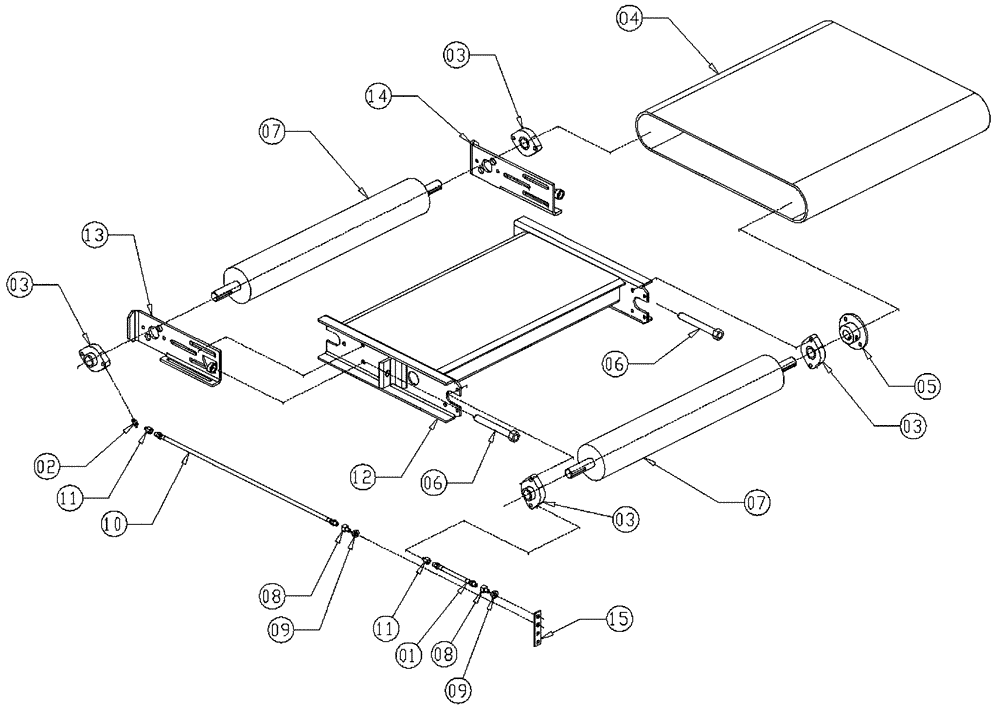

Запчасти Case IH 437 (01-010) - BELT CARTRIDGE ASSEMBLY Basic Unit

1

BN67999

HOSE

Grease, 9"

2шт.

2

BN10451

LUBE NIPPLE

1/4"-28 45º

2шт.

3

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

4шт.

4

BN15031

CONVEYOR BELT,26.50" W x 53.25" L

1шт.

5

BN21398A

COUPLING

Machined

1шт.

6

BN35404

ADJUSTER

Takeup

2шт.

7

343499A1

PULLEY

Conveyor, Volcanized

2шт.

8

BN35805

ADAPTER

1/8 NPSM-NPTF

4шт.

9

BN53570

BHD LOCK NUT

4шт.

10

BN68186

HOSE

Grease, 32.00

2шт.

11

BN53567

ADAPTER

1 /4"-28X1 /8" N PTF

4шт.

12

BN63524

FRAME

Floor & Roller

1шт.

13

BN63531

MOUNTING PLATE

Roller, LH

1шт.

14

BN63532

MOUNTING PLATE

Roller, RH

1шт.

15

BN67993

BRACKET

Grease Line, CONV

2шт.
