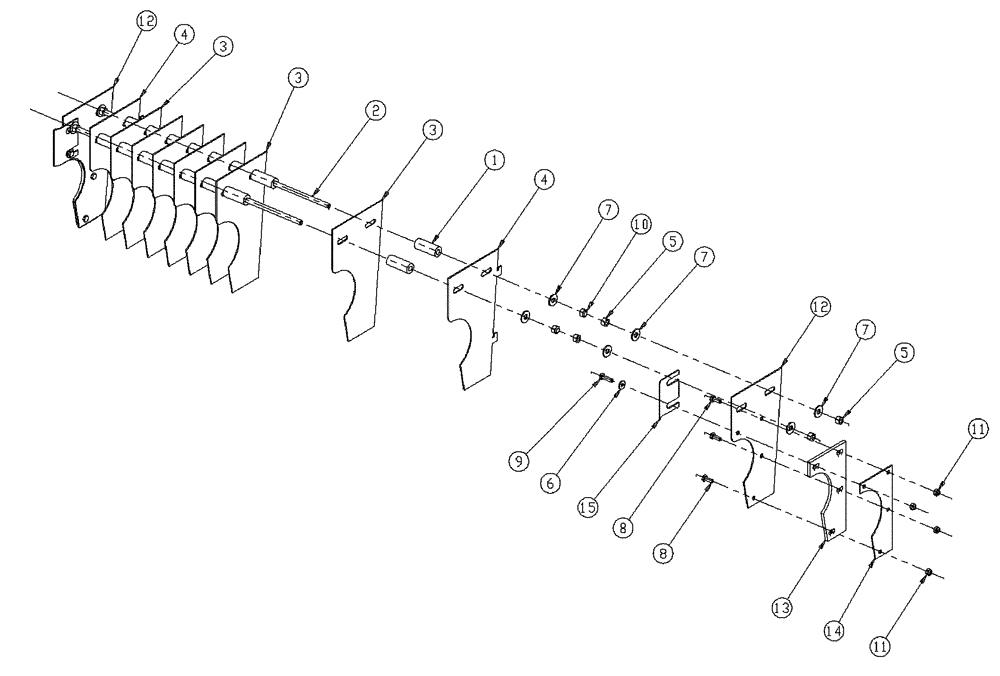

Запчасти Case IH 437 (01-009) - DIVIDER ASSEMBLY Basic Unit

1

BN15085

Spacer, Divider

16шт.

2

BN35414

ROD

Thread, 3/8-16 UNC X 24.75

2шт.

3

BN35421

7шт.

4

BN35485

DIVIDER

W/Tab

2шт.

5

BN50064

NUT

3/8"-16, Stainless Steel

8шт.

6

BN50138

WASHER,1/4", SS

2шт.

7

BN50146

WASHER,3/8", Stainless

12шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

6шт.

9

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

BN55359

LOCK NUT,1/4"-20, SS

8шт.

12

BN65670

DIVIDER

14 GA 304, 6.3 X 11.21

2шт.

13

BN65671

SEAL

1/4, 4.50 X 8.31

2шт.

14

BN65672

SUPPORT

14 GA 304, 4.00 X 7.81

2шт.

15

BN65673

LOCKING TAB

14 GA 304, 2.75 X 3.38

2шт.
