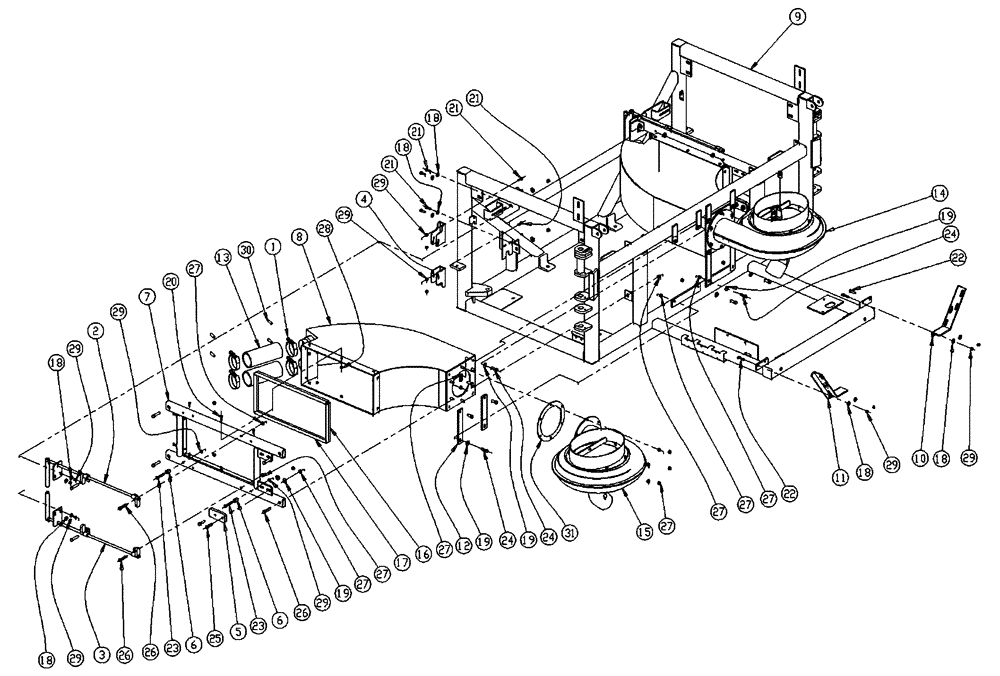

Запчасти Case IH 437 (01-008) - AIR SYSTEM GROUP Basic Unit

1

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

8шт.

2

BN300688

HANDLE

Lock, RH

2шт.

3

BN300689

HANDLE

Lock, LH

2шт.

4

BN300696

STOP

Handle Lock

4шт.

5

BN300697

STOP

Venturi, Side

4шт.

6

BN300698

STOP

Venturi, Bottom

4шт.

7

BN300699

FRAME

Airway Mount

2шт.

8

343300A1

AIR CHANNEL

Way

2шт.

9

BN300739

FRAMEWORK

1шт.

10

86986587

BRACKET

Tubes, Rear, RH

1шт.

11

BN300741

BRACKET

Tubes, Rear, LH

1шт.

12

BN300748

Airway

4шт.

13

BN302845

AIR HOSE,27.00"

4шт.

14

NSS

NOT SOLD SEPARAT

Fan Group, 6", CCW

1шт.

See Fig. 01-014

1шт.

15

NSS

NOT SOLD SEPARAT

Fan Group, 6", CW

1шт.

See Fig. 01-011

1шт.

16

BN303334

SEAL

Airway, Side

4шт.

17

BN303335

DOOR SEAL

Airway Top & Bottom

4шт.

18

BN50142

WASHER,5/16", Stainless Steel

20шт.

19

BN50146

WASHER,3/8", Stainless

20шт.

20

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

20шт.

21

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

22

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

4шт.

23

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

24

BN50258

BOLT,3/8"-16 X 1.25", Stainless

8шт.

25

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

26

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

16шт.

27

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

40шт.

28

BN55359

LOCK NUT,1/4"-20, SS

20шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

24шт.

30

BN68086

CAP

Round, Rubber, .25 ID x 1.00

8шт.

31

BN68580

GASKET

Fan To Airway

2шт.
