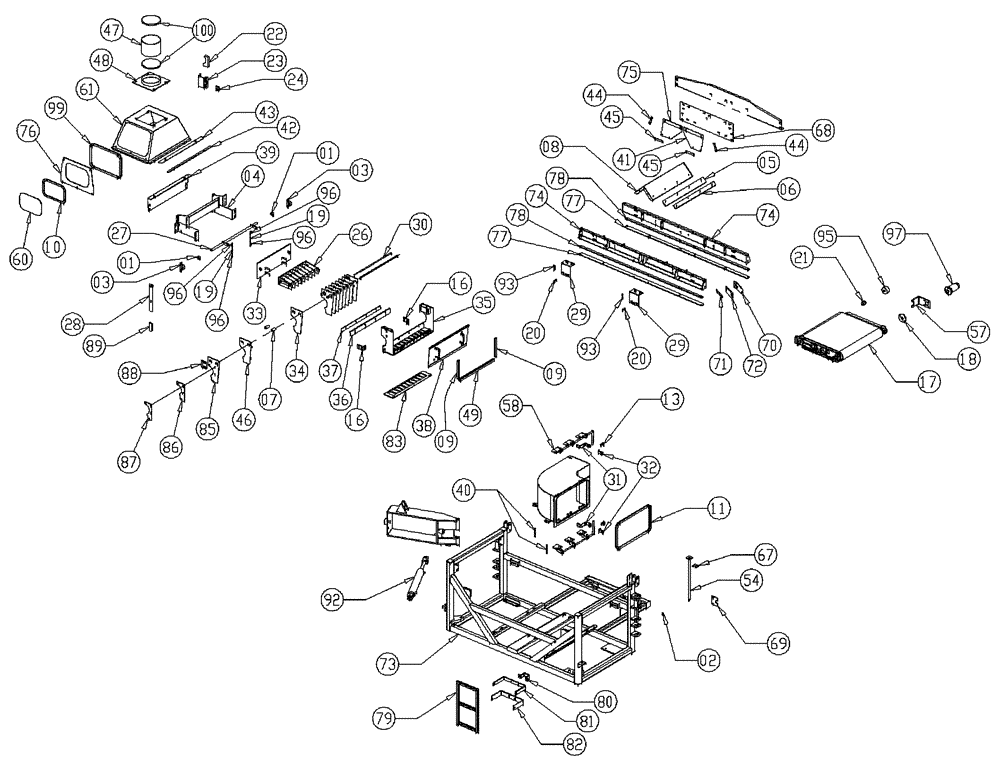

Запчасти Case IH 437 (01-007[01]) - CONVEYOR GROUP, FLEX-AIR Basic Unit

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

10шт.

3

BN10496

BEARING ASSY

3/4" Wood Pillow Block

4шт.

4

BN15019

Mount W/-M, Gate, Conveyor

2шт.

5

BN15077

SEAL

Center

2шт.

6

BN15078

STRAP

Seal, Center

2шт.

7

BN15085

Spacer, Divider

32шт.

8

BN15089

Center, Conveyor

1шт.

9

BN300592

SEAL

Seal, Door, Side

4шт.

10

84167814

RUBBER SEAL

Conveyor Access

1шт.

11

BN15715

SEAL

Fan Airway

2шт.

12

BN67857

ANGLE

Mount, Side Cover

2шт.

13

BN15717

PIN

Snap, 1/4" x 1 3/4"

4шт.

14

BN15736

PLATE

Sensor, 2 Lobe

1шт.

15

BN67852

COVER

Side, RH

1шт.

16

BN15902

SUPPORT

Divider Plate

4шт.

17

BN15996

BELT

Cartridge Assembly - Flex

2шт.

18

BN21398A

COUPLING

Machined

2шт.

19

BN21487

THREADED ROD

1/4-28 UNF X 1.75

4шт.

20

BN21652

PIN

3/8 x 2

12шт.

21

BN22884

KIT

Adaptor

2шт.

22

BN23002

SENSOR

Low Hopper - DJ100

1шт.

23

BN23105

MOUNTING PLATE

16 GA 409 5.0 X 7.5

1шт.

24

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

25

BN23315

SENSOR

RPM (D-J) M25

1шт.

26

BN35408

DIVIDER

Gate, Conveyor

2шт.

27

BN35409

SHAFT

Gate, Conveyor

2шт.

28

BN35411

HANDLE

Gate, Conveyor

2шт.

29

BN35413

ADJUSTER

Gate

2шт.

30

BN35414

ROD

Thread, 3/8-16 UNC X 24.75

4шт.

31

BN35417

LOCK

Outer, Cam Lock

4шт.

32

BN35418

LOCK

Inner Cam Lock

4шт.

33

BN35420

Gate, Conveyor

2шт.

34

BN35421

14шт.

35

BN35423

PLATE

Divider, Outside

2шт.

36

BN35427

SEAL

Roller, Bottom

2шт.

37

BN35428

STRAP

Seal, Roller, Bottom

2шт.

38

BN300594

DOOR

Divider Access

2шт.

39

BN35434

Panel-Inside

2шт.

40

BN35435

Adjuster-Pin, Fan Airway

8шт.

41

BN35444

MOUNTING PLATE

Seal, Side, RH

2шт.

42

BN15739

Spacer-Cover, Conveyor

2шт.

43

BN15740

Strip-Cover, Conveyor

2шт.

44

BN35445

STRAP

Seal, End

4шт.

45

BN35446

STRAP

Seal, Bottom

4шт.

46

BN35485

DIVIDER

W/Tab

4шт.

47

BN69181

HOSE

8" ID x 6.00j, Flexible

1шт.

48

BN35491

Ring W/M-8 IN Auger

1шт.

49

BN300593

SEAL

Door, Bottom

2шт.

50

BN35697

HYDRAULIC MOTOR

Hydraulic - .73 Rex

2шт.

BN35697R

REMAN-HYD MOTOR

437 (5/98-2/99)

2шт.

BN35697C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

51

BN35698

BUSHING

Taper 20 MM

2шт.

52

BN35702

FAN

HP, 6 Inch, CCW

1шт.

53

BN35704

FAN

HP, 6 Inch, CW

1шт.

54

BN35722

PIN

Boom, Inner

2шт.

55

BN35819

BLOCK

Hydraulic Deluxe

1шт.

Use 68190 Fig. 07-017, 302883 Fig. 07-013, 302884 Fig. 07-014

1шт.

56

BN35825

BLOCK

Return, 12 & 8 Ports

1шт.

57

BN35888

ARM

Torque-Conveyor

2шт.

58

BN35911

Cam Lock W/M-RH

2шт.

59

BN35912

Cam Lock W/M-LH

2шт.

60

87265980

WINDOW

Hopper 12" x 8"

1шт.

61

BN35960

HOPPER

Conveyor

1шт.

62

BN67842

Valve Box

1шт.

63

BN35965

Cover-Access, Valve Box

1шт.

64

BN67849

DOOR

Valve Box

1шт.

65

BN67855

COVER

Side, LH

1шт.

66

BN68580

GASKET

Fan To Airway

2шт.

67

BN35983

SPACER

Door Hinge, 7 GA

3шт.

67

BN35984

SPACER

Door Hinge, 10 GA

3шт.

67

BN35985

SPACER

Door Hinge, 12 GA

3шт.

68

BN35988

SEAL

Side, Conveyor

2шт.

69

BN35990

SPACER

Boom, 7 GA

1шт.

69

BN35991

SPACER

Boom, 10 GA

1шт.

69

BN35992

SPACER

Boom, 12 GA

1шт.

70

BN39068

BRACKET

12 GA 409 3.0 X 8.0

4шт.

71

BN39069

STRAP

14 GA 409 .75 X 6.5

4шт.

72

BN39070

WIPER SEAL

1/4" X 2.5" X 6.5

4шт.

73

BN63509

FRAME

Conveyor Support

1шт.

74

BN63516

Conveyor

2шт.

75

BN63533

SEAL

Side LH

2шт.

76

BN63535

COVER

Hopper Access

1шт.

77

BN63541

SLIDE GUIDE

Slide Rail, Belt Cartridge

2шт.

78

BN63542

SPACER

Slide Rail

2шт.

79

BN65361

LADDER

Conveyor

1шт.

80

BN65363

BRACKET

Upper, Ladder

1шт.

81

BN65364

SUPPORT

Upper, Ladder

1шт.

82

BN65365

SUPPORT

Lower, Ladder, Bar

1шт.

83

BN68581

GASKET

Venturi To Divider

2шт.

84

BN23453

MOUNTING PLATE

RPM Sensor

1шт.

85

BN65670

DIVIDER

14 GA 304, 6.3 X 11.21

4шт.

86

BN65671

SEAL

Rubber, 1/4, 4.50 X 8.31

4шт.

87

BN65672

SUPPORT

14 GA 304, 4.00 X 7.81

4шт.

88

BN65673

LOCKING TAB

14 GA 304, 2.75 X 3.38

4шт.

89

BN65711

CAP

Rectifier, 1.25 X .162 X 4.00

2шт.

90

BN65808

LATCH

Adjustable Draw

2шт.

91

BN65809

MANIFOLD

T-Block

1шт.

92

BN65810

CYLINDER

Hydraulic, 2.5 X 16

2шт.

See Fig. 06-005

1шт.

93

BN71007

CLIP,3/16" Hairpin

3/16" #8

8шт.

94

BN72175

PLUG

1/2 NPT Pipe

1шт.

95

BN95852

SENSOR

Application, Rate D-J#CCS1

2шт.

96

70925040

UNIVERSAL JOINT

1/4"

8шт.

97

BN65718

HYDRAULIC MOTOR

Hydro, Ross MG12

2шт.

98

BN65860

TUBE

Inlet, Cooler

2шт.

99

BN68012

SEAL

CONV Access

1шт.

100

BN85062

HOSE CLAMP

8" Bridge

2шт.
