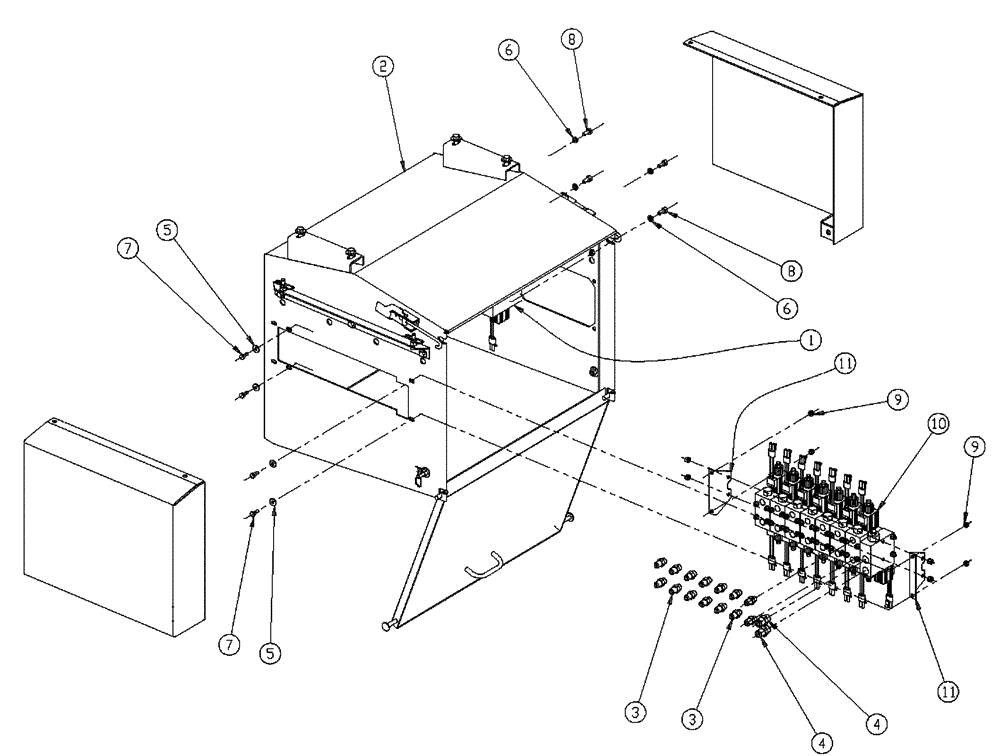

Запчасти Case IH 437 (01-005) - VALVE BOX GROUP Basic Unit

1

BN323213

HYDRAULIC VALVE

Block, Single

1шт.

See Fig. 07-011

1шт.

2

BN302888

HYDRAULIC VALVE

Box Group

1шт.

See Fig. 01-006

1шт.

3

BN444002

ADAPTER

O-Ring 37 Flare 06-06

14шт.

4

BN444004

FITTING

O-Ring 37 Flare

2шт.

5

BN50138

WASHER,1/4", SS

4шт.

6

BN50144

LOCK WASHER

5/16" SS Lock

4шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

9

BN55359

LOCK NUT,1/4"-20, SS

4шт.

10

BN63543

HYDRAULIC VALVE

Waterman 7 Bank

1шт.

See Fig. 07-012

1шт.

11

BN67858

MOUNTING PARTS

Waterman Valve

2шт.

11a

BN71007

CLIP,3/16" Hairpin

Clip, 3/16" #8

1шт.

Associated Part Of Mount, Waterman Valve, P/N BN67858

1шт.
