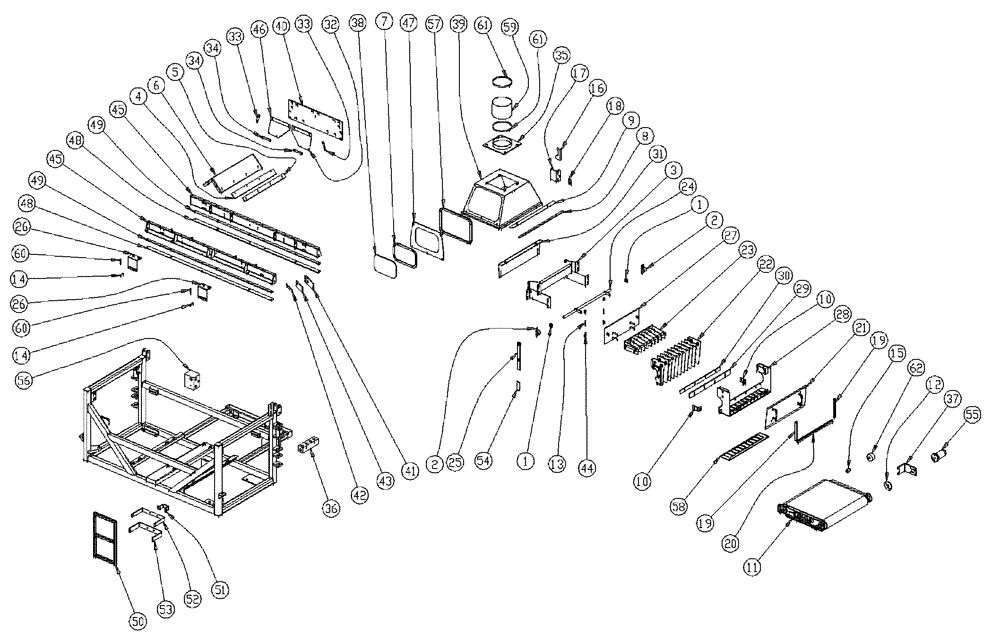

Запчасти Case IH 437 (01-004) - CONVEYOR PARTS, MID Basic Unit

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN10496

BEARING ASSY

3/4" Wood Pillow Block

4шт.

3

BN15019

Mount, Gate, Conveyor

2шт.

4

BN15077

SEAL

Center

2шт.

5

BN15078

STRAP

Seal, Center

2шт.

6

BN15089

C-Enter, Conveyor

1шт.

7

84167814

RUBBER SEAL

Conveyor Access

1шт.

8

BN15739

Cover, Conveyor

2шт.

9

BN15740

Cover, Conveyor

2шт.

10

BN15902

SUPPORT

Divider Plate

4шт.

11

BN15996

BELT

Cartridge Assembly - Flex

2шт.

12

BN21398A

COUPLING

Machined

2шт.

13

BN21487

THREADED ROD

1/4-28 UNF X 1.75

4шт.

14

BN21652

PIN

3/8 x 2

6шт.

15

BN22884

KIT

Adaptor

2шт.

16

BN23002

SENSOR

Low Hopper - DJ100

1шт.

17

BN23105

MOUNTING PLATE

16 GA 409 5.0 X 7.5

1шт.

18

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

19

BN300592

SEAL

Seal, Door, Side

4шт.

20

BN300593

SEAL

Door, Bottom

2шт.

21

BN300594

DOOR

Divider Access

2шт.

22

BN303622

Group, Flex-Air

2шт.

23

BN35408

DIVIDER

Gate, Conveyor

2шт.

24

BN35409

SHAFT

Gate, Conveyor

2шт.

25

BN35411

HANDLE

Gate, Conveyor

2шт.

26

BN35413

ADJUSTER

Gate

2шт.

27

BN35420

Gate, Conveyor

2шт.

28

BN35423

PLATE

Divider, Outside

2шт.

29

BN35427

SEAL

Roller, Bottom

2шт.

30

BN35428

STRAP

Seal, Roller, Bottom

2шт.

31

BN35434

Inside

2шт.

32

BN35444

MOUNTING PLATE

Seal, Side, RH

2шт.

33

BN35445

STRAP

Seal, End

4шт.

34

BN35446

STRAP

Seal, Bottom

4шт.

35

BN35491

Ring 8" Auger

1шт.

36

BN35825

BLOCK

Return, 12 & 8 Ports

1шт.

37

BN35888

ARM

Torque Conveyor

2шт.

38

87265980

WINDOW

Hopper 12" x 8"

1шт.

39

BN35960

HOPPER

Conveyor

1шт.

40

BN35988

SEAL

Side, Conveyor

2шт.

41

BN39068

BRACKET

12 GA 409 3.0 X 8.0

4шт.

42

BN39069

STRAP

14 GA 409 .75 X 6.5

4шт.

43

BN39070

WIPER SEAL

1/4" X 2.5" X 6.5

4шт.

44

70925040

UNIVERSAL JOINT

1/4"

8шт.

45

BN63516

Conveyor

2шт.

46

BN63533

SEAL

Side LH

2шт.

47

BN63535

COVER

Hopper Access

1шт.

48

BN63541

SLIDE GUIDE

Rail, Belt Cartridge

2шт.

49

BN63542

SPACER

Slide Rail

2шт.

50

BN65361

LADDER

Conveyor

1шт.

51

BN65363

BRACKET

Upper, Ladder

1шт.

52

BN65364

SUPPORT

Upper, Ladder

1шт.

53

BN65365

SUPPORT

Lower, Ladder, Bar

1шт.

54

BN65711

CAP

Rectifier, 1.25 X .162 X 4.00

2шт.

55

BN65718

HYDRAULIC MOTOR

Ross MG12

2шт.

56

BN65809

MANIFOLD

T-Block

1шт.

57

BN68012

SEAL

Cover, CONV Access

1шт.

58

BN68581

GASKET

Venturi To Divider

2шт.

59

BN69181

HOSE

8" ID x 6.00, Flexible

1шт.

60

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.

61

BN85062

HOSE CLAMP

8" Bridge

2шт.

62

BN95852

SENSOR

Application Rate D-J#CCS1

2шт.
