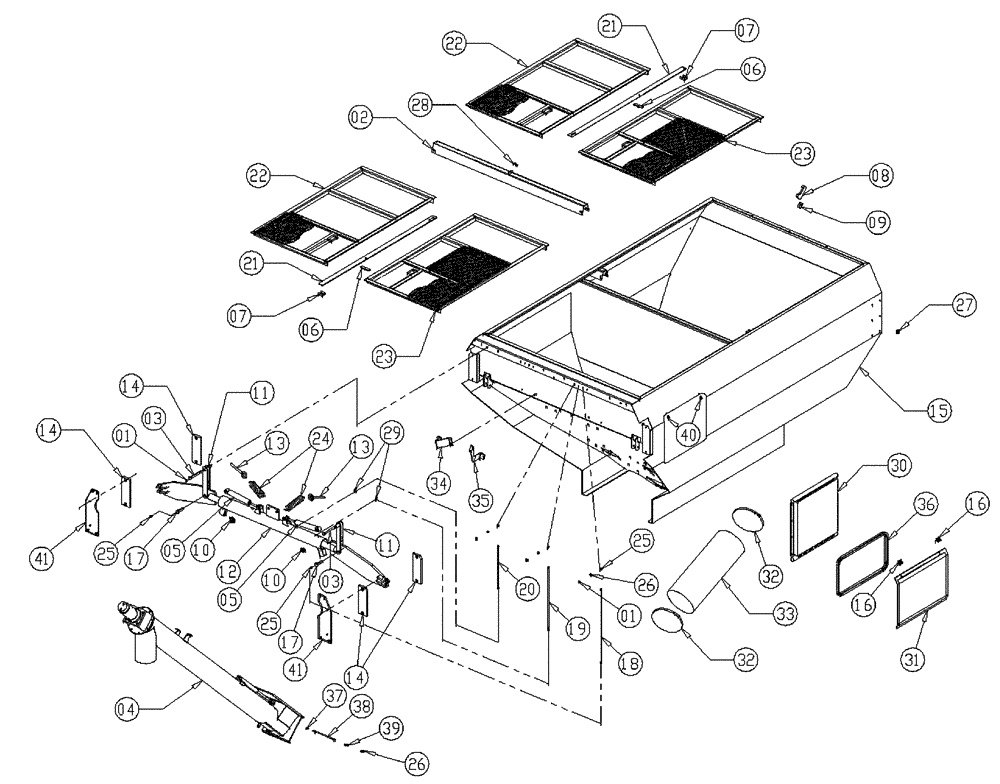

Запчасти Case IH 437 (01-001) - HOPPER GROUP, FLEX-AIR Basic Unit

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

8шт.

2

BN15199

SUPPORT

Screen, Center

1шт.

3

BN15466

BOLT

Grease, 5/8"-11 x 6.0

2шт.

4

BN15995

Auger, 8 Inch Flexair

1шт.

5

BN21565

SHOCK ABSORBER

2шт.

6

BN21803

MOUNTING PLATE

10 ga 409 1.0 x 4.0

2шт.

7

BN21809

HOLDER

Tie Down, 10 GA 409 2.0 x 3.0

2шт.

8

BN23002

SENSOR

Low Hopper - DJ100

1шт.

9

BN23298

COVER

14 GA 304 1.5 X 2.0

1шт.

10

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

11

BN35452

ARM

boomswing

2шт.

12

BN35456

BOOM

swing

1шт.

13

BN35463

EYEBOLT

1/2-13 UNC x 6

2шт.

14

BN301598

WEAR PLATE

Boomswing, .75

4шт.

15

BN35592

Body, Flex Air

1шт.

16

BN29392

KNOB

3" With 3/8"-16 Female Thread

8шт.

17

BN35713

BOLT

Grease, 3/4-10 X 3

2шт.

18

BN35808

HOSE,0.13" ID x 30.00", SAE 100R7

Grease, 30"

2шт.

19

BN35809

HOSE,0.13" ID x 20.00", SAE 100R7

Grease

2шт.

20

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

21

BN35896

COVER

Center, Screen

2шт.

22

BN35897

FRAME

Screen

2шт.

23

BN35898

FRAME

Screen, W/Hole

2шт.

24

BN50542

SPRING

2.21 OD x 14.312 Wire

2шт.

25

BN53569

ELBOW

Grease, 1/8 NPT BH 90

8шт.

26

BN53570

BHD LOCK NUT

7шт.

27

BN53802

WASHER

Beveled, 1/2"

2шт.

28

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

29

BN35811

ADAPTER

45º, Style 2

4шт.

30

BN24984

OIL COOLER

Hydraulic

2шт.

31

BN68830

SCREEN

Side Cooler

2шт.

32

BN66817

CLAMP

Hose, 12 Inch

4шт.

33

BN66818

HOSE

12" OD x 35 Rings, 34 MIN

2шт.

34

BN67139

BUMPER

FA, RH

1шт.

35

BN67140

COVER

Bumper Stop, FA, LH

1шт.

36

BN68831

SEAL

Side Cooler Screen

2шт.

37

BN53567

ADAPTER

1/4"-28 X 1/8" NPTF

1шт.

38

BN68082

HOSE

Grease, 104.00

1шт.

39

BN35805

ADAPTER

Straight 1/8 NPSM-NPTF

1шт.

40

BN68832

CLIP

J-Type, 3/8-16

8шт.

41

BN68815

PLATE

Bolt On Boomswing

2шт.
