(09-003) - DASH PANEL ASSY, FOAM, FLEX

Запчасти Case IH 437 (09-003) - DASH PANEL ASSY, FOAM, FLEX (16) - FOAM MARKER

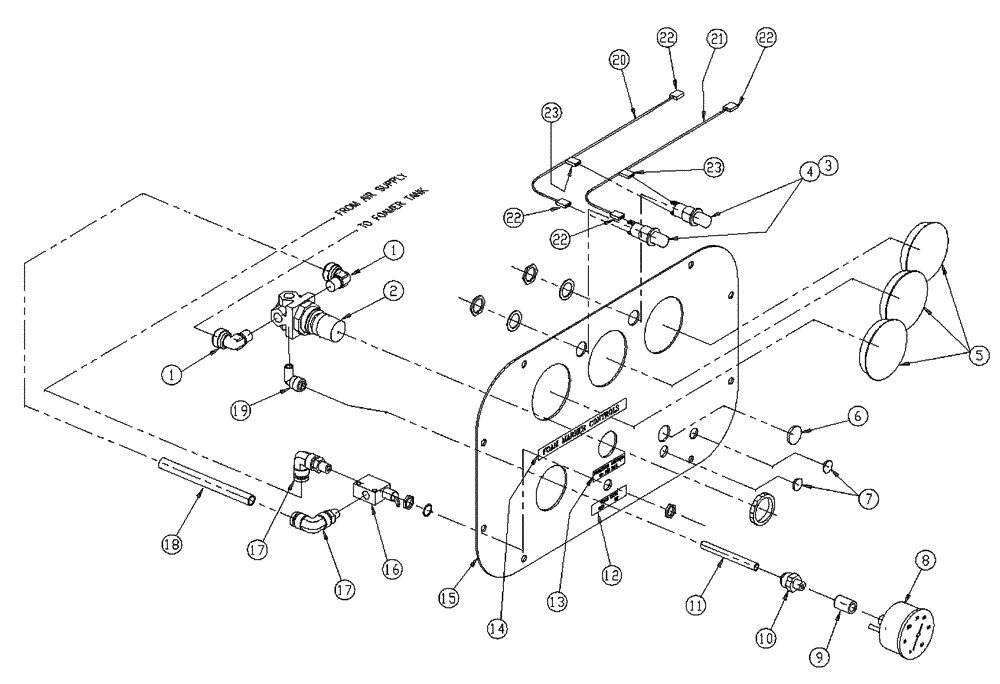

Схема запчастей Case IH 437 - (09-003) - DASH PANEL ASSY, FOAM, FLEX (16) - FOAM MARKER
17
7
10
18
13
14
17
23
19
22
23
2
15
3
11
6
4
21
22
16
9
1
22
12
5
22
8
20
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

2

87388151

REGULATOR

Air Pressure

1шт.

3

BN2297225

LIGHT

39F3462

2шт.

4

BN2390267

BULB

ML1815 T-3 1/4"

2шт.

5

BN2394636

PLUG

Dash 2-1/2" 2790

3шт.

6

BN2394626

PLUG

Dash 3/4" #2683

1шт.

7

BN2394623

PLUG

Dash 1/2" #2643

2шт.

8

BN2296768

GAUGE

Air Pressure 0 - 60

1шт.

9

BN338422

1/8 STD

1шт.

10

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

11

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

12

BN7132066

IDENTITY PLATE

Foamer Off-On

1шт.

13

BN7132065

IDENTITY PLATE

(Pressure)

1шт.

14

BN8093002-1

IDENTITY PLATE

Foam Marker

1шт.

15

BN7142036

SHEET

Instrument Panel RH

1шт.

16

BN2402091

VALVE

Air Toggle 3-Way

1шт.

17

BN2399413

HYD CONNECTOR

Tube Me380180

2шт.

18

BN2292088

AIR INTAKE TUBE

3/8" Black

1шт.

19

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

20

BN2298382

WIRE

16 GA 11165 Red

1шт.

21

BN2298386

WIRE

16 GA 11165 Black

1шт.

22

BN2393063

TERMINAL

KTN93

4шт.

23

BN2393064

TERMINAL

KTN94

2шт.
