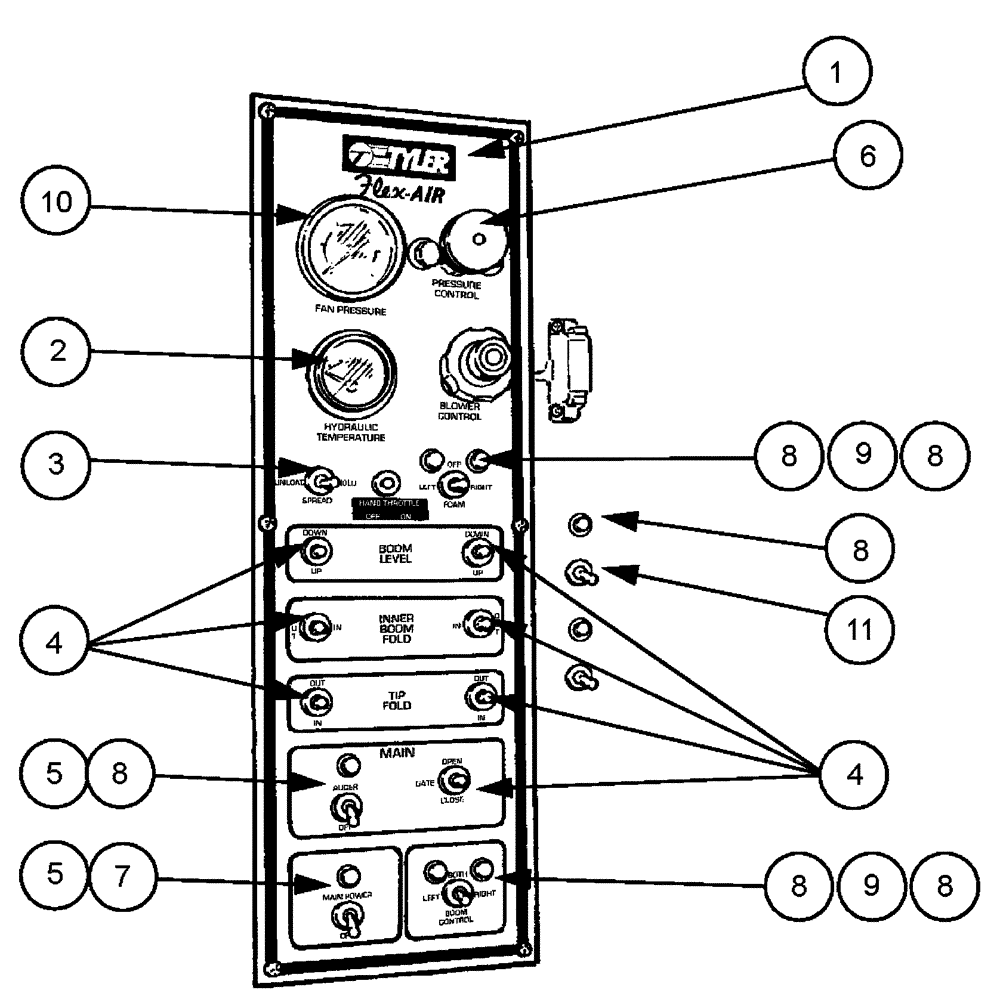

Запчасти Case IH 437 (13-001) - FLEX-AIR CONTROL PANEL (06) - ELECTRICAL

1

BN35840

Panel-Flex Options

1шт.

1a

BN35841

Panel (OPT) Flex

1шт.

Associated Part Of Panel-Flex Options, P/N BN35840

1шт.

1b

BN35834

WIRE HARNESS

Flex, Cab/Solenoid

1шт.

Associated Part Of Panel-Flex Options, P/N BN35840

1шт.

2

BN21952

GAUGE

Oil Temperature, 100-240 F

1шт.

2a

BN29346

REPAIR KIT

Bulb & Socket Kit 12 Volt

1шт.

Service Part For Ref. 2

1шт.

3

BN35846

SWITCH

(On)-Off-On DPDT

1шт.

4

BN29445

SWITCH

On-Off-On

7шт.

5

BN29446

SWITCH

Toggle, On-Off

2шт.

6

BN35691

VALVE PRESSURE RELIE

Assembly

1шт.

7

BN24355

INDICATOR LIGHT

(Red) 1/2"

1шт.

8

BN21595

INDICATOR LIGHT

(Green)

6шт.

9

627238

FAN SWITCH

On-Off-On DPDT

2шт.

10

BN15817

GAUGE

5000 PSI Panel Mount

1шт.

11

BN24129

SWITCH

On-None-On Dpdt

1шт.
