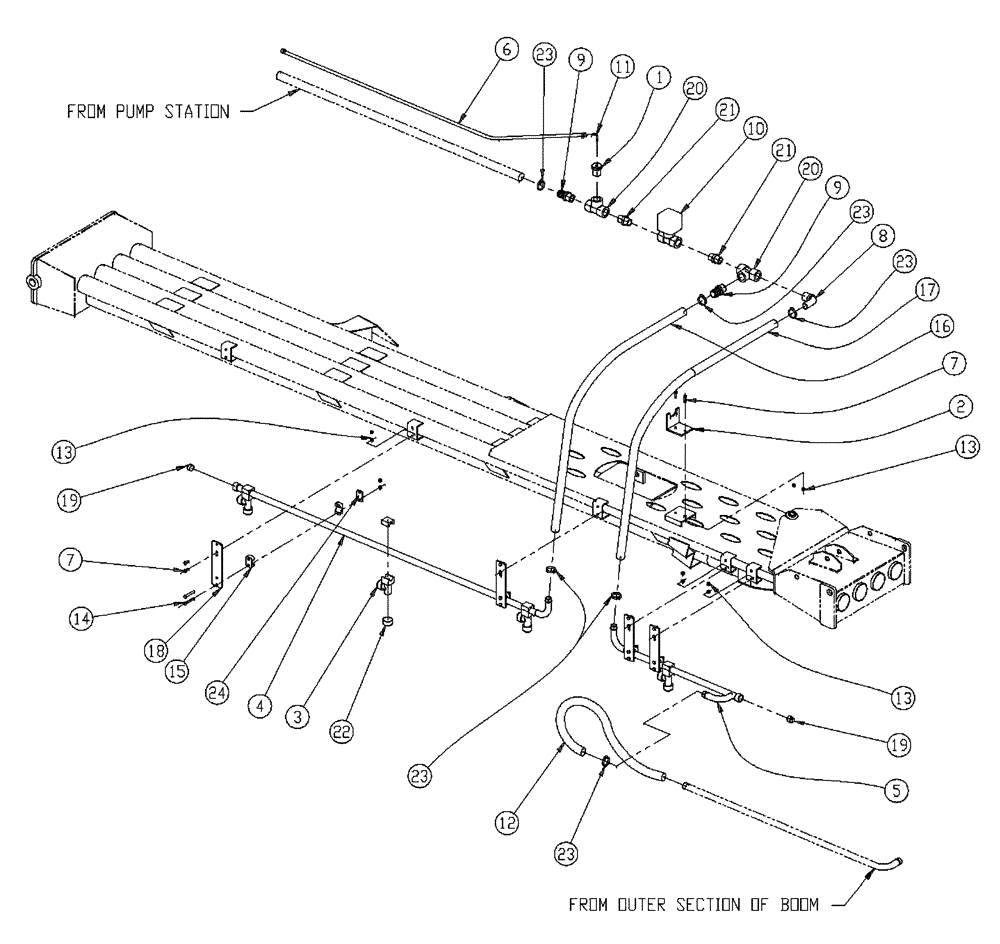

Запчасти Case IH 437 (10-006) - WET BOOM, 3.0, LH, INNER Wet Kit

1

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

2

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

3

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

4шт.

4

BN300290

BAR

Spray, Inner

1шт.

5

BN300319

BAR

Spray, Inner, End, LH

1шт.

6

BN303734

HOSE,9.50 mm ID x 307.00 mm

EPDM

1шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

8

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

9

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

10

BN53495

VALVE

PP-Ball (2-Way) ELE

1шт.

11

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

12

BN53912

HOSE

1" ID EPDM x 38"

1шт.

13

BN55359

LOCK NUT,1/4"-20, SS

18шт.

14

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

15

BN65324

CLAMP

1" OD, Poly

4шт.

16

BN66856

HOSE

1" EPDM x 25.00"

1шт.

17

BN66859

HOSE

1" EPDM x 23.00"

1шт.

18

BN68981

BRACKET

Spray Bar

4шт.

19

BN73553

PLUG

3/4" NPT, Poly

2шт.

20

BN73629

TEE

1" Poly Pipe

2шт.

21

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

22

BN74619

CAP

with gasket tee jet black

4шт.

23

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.
