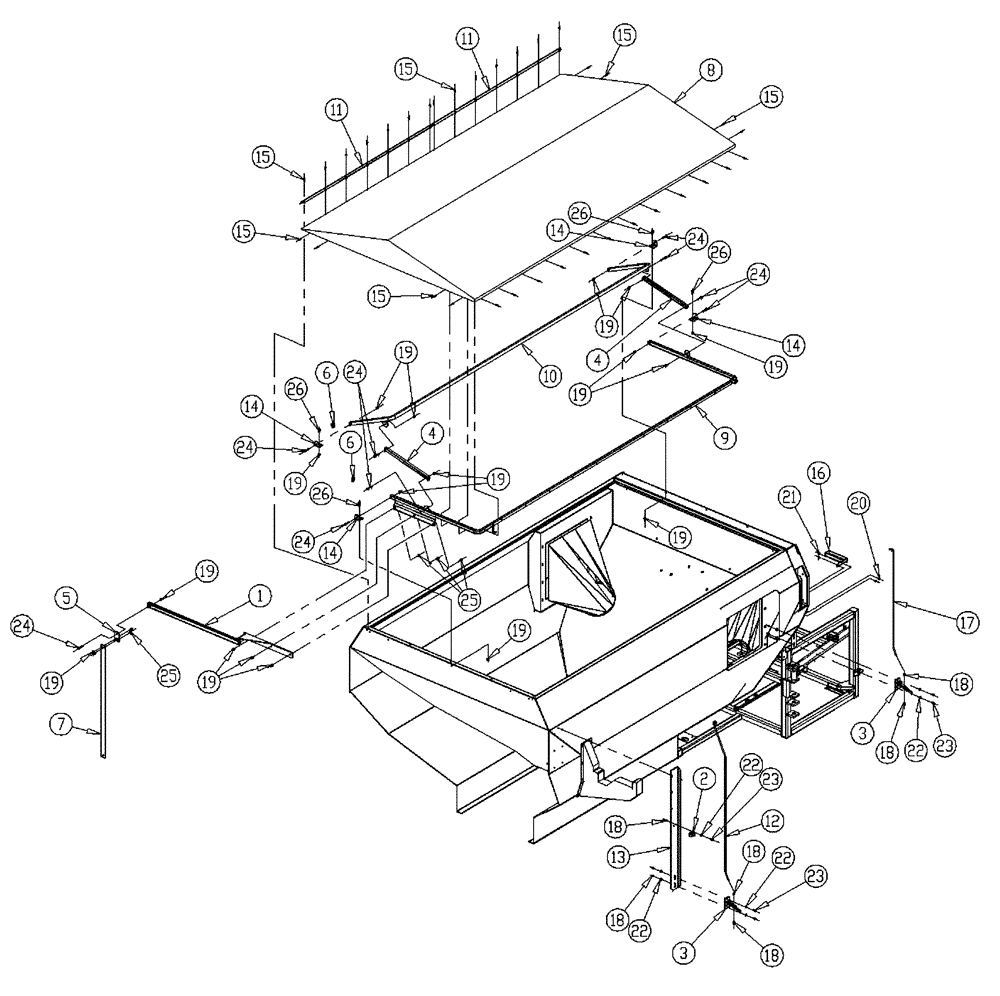

Запчасти Case IH 437 (14-001) - FLIP-TOP GROUP, REAR Tarps Decals/ Miscellaneous

1

BN5747

Handle, Flip Top MW

1шт.

2

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

3

BN5777

Lock Mechanical Fliptop

2шт.

4

BN15214

LINK

Fliptop

2шт.

5

BN32816

BRACKET

10 GA 304 2.0 X 3.75

1шт.

6

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

7

BN32836

STRAP

Pull M8 M15 Fliptop

1шт.

8

BN35732

TARPULIN

Fliptop, Yellow

1шт.

8

BN307139

Fliptop, Tan

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9

BN35959

FRAME

Fliptop, Rear

1шт.

10

BN35906

FRAME

Inside Fliptop

1шт.

11

BN35908

SUPPORT

Tarp Outside

2шт.

12

BN67118

ROD

Fliptop, Side

1шт.

13

BN66617

Fliptop Rod, Rear

1шт.

14

BN37345

PIVOT

10 GA 304 2.0 X 3.37

4шт.

15

BN54127

RIVET

Nylon Drive-Not Black

34шт.

16

BN63534

GUIDE

Fliptop Rod

1шт.

17

BN67117

ROD

Lock, 38" Formed

1шт.

18

BN55361

NUT,5/16"-18, Nylon, Stainless

9шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

18шт.

20

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

21

BN55359

LOCK NUT,1/4"-20, SS

2шт.

22

BN50142

WASHER,5/16", Stainless Steel

9шт.

23

BN50476

BOLT,5/16"-18 x 0.75", Stainless

5шт.

24

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

9шт.

25

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

5шт.

26

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.
