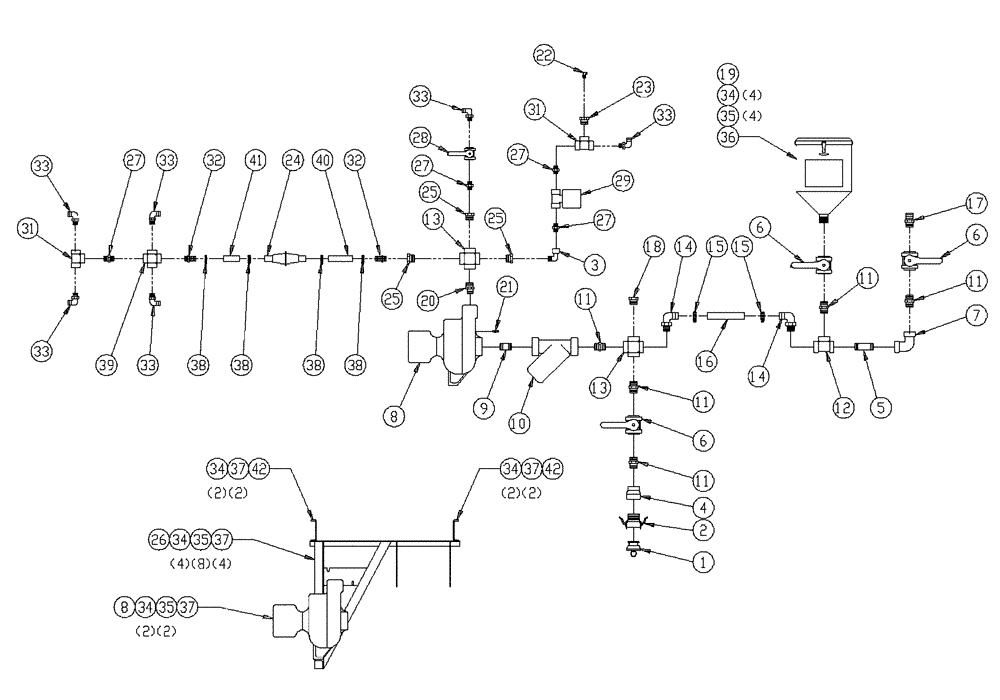

Запчасти Case IH 437 (11-001) - PUMP STATION, 3 MID Reload Control & Chemical Eductor

1

BN22900

PLUG

2" Cam Lock

1шт.

2

BN73775

COUPLING,2" Quick Disconnect x 2" Hose Barb, Poly

2" Cam Lock Poly

1шт.

3

BN53682

ELBOW

90 Street 1" Poly

1шт.

4

BN73776

REDUCER,2" Female NPT x 1-1/2" Female NPT, Poly

2" X 1.5", Poly

1шт.

5

BN73732

LUBE NIPPLE

1.5" X 4" Poly

1шт.

6

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

3шт.

7

BN73713

ELBOW,90 Degree Elbow, 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

90° x 1-1/2" Poly

1шт.

8

BN53670

HYDROSTATIC PUMP

Hypro w/HMI Motor

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

437 (5/98 2/99)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

9

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

10

BN73735

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

Assy 1.5-12 Mesh

1шт.

11

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

5шт.

12

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

13

BN73728

FITTING,1-1/2" NPT

Cross - 1&1/2" NPT Poly

2шт.

14

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

15

BN76056

HOSE CLAMP

#36

2шт.

16

BN53617

HOSE,1.50" ID x 10.00"

EPDM

1шт.

17

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

18

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

19

BN23476

TANK

Chemical Inductor

1шт.

20

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

1шт.

21

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

22

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

23

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

24

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

25

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1", Reducer Poly

3шт.

26

BN66083

Mount, Wet Pump, 3 Wheel

1шт.

27

BN73648

NIPPLE

1" Short Poly Pipe

4шт.

28

BN73605

HYDRAULIC VALVE

1" Ball Poly

1шт.

29

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

31

BN73629

TEE

1" Poly Pipe

2шт.

32

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

33

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

34

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

35

BN50146

WASHER,3/8", Stainless

14шт.

36

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

37

BN50254

BOLT,3/8"-16 x 1", Stainless

10шт.

38

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

39

BN53663

COUPLING

1" NPT Poly

1шт.

40

BN303714

1", EPDM x 17.00

1шт.

41

BN303715

1", EPDM x 4.00

1шт.

42

BN67516

Mount, Pump Station

2шт.
