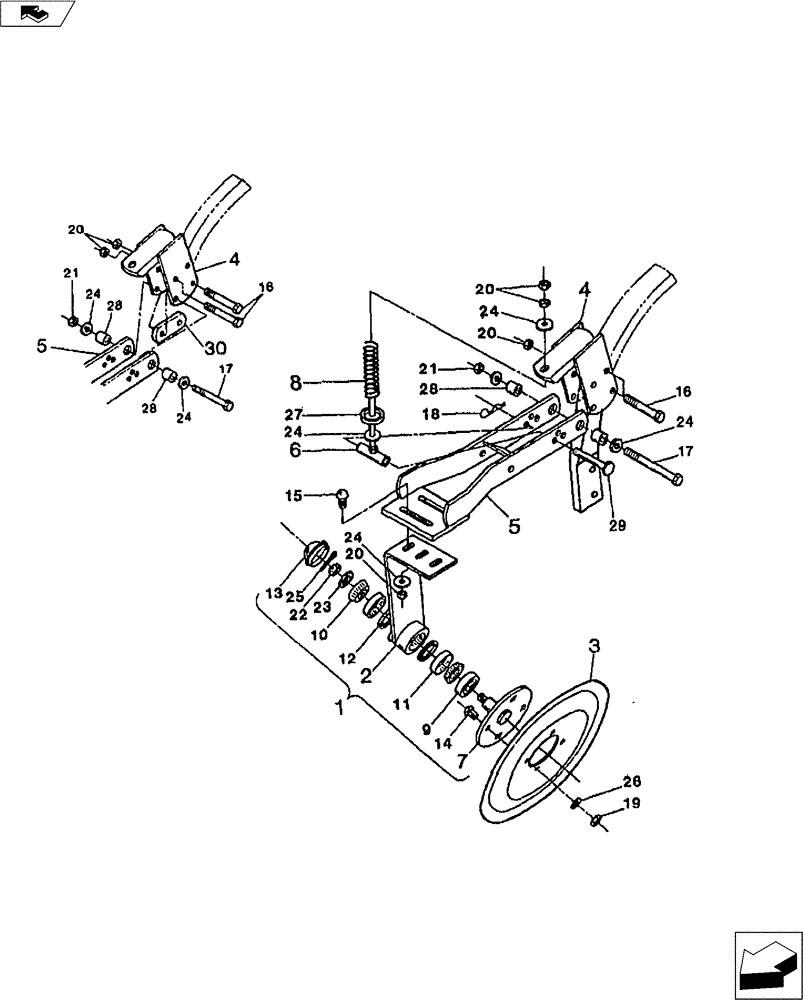

Запчасти Case IH FERTILIZER (75.200.12) - UNI-SEALER (75) - SOIL PREPARATION

1

02333100

1шт.

2

02333110

1шт.

3

33551441

PLOW DISC

Uni-Sealer

1шт.

4

02333300

BRACKET

Weldment

1шт.

5

02333200

FRAME

Weldment

1шт.

6

02333500

SUPPORT

1/2" Pivot Bolt

1шт.

7

02329000

1шт.

8

24117700

COMPRESSION SPRING

1шт.

9

21931000

SEAL

CR 10035

1шт.

10

21870750

BEARING CONE

0.75" Bore (Timken LM11949)

1шт.

11

21881780

BEARING CUP

1.78" OD (Timken LM11940)

1шт.

12

14600188

SNAP RING

Internal Retaining Bolt

1шт.

13

28400100

CAP

Dust (Dim. "A" = 2")

1шт.

14

NSS

NOT SOLD SEPARAT

3/8" x 3/4" Carriage Bolt

1шт.

15

NSS

NOT SOLD SEPARAT

1/2" x 1/2" NC Carriage Bolt

1шт.

16

NSS

NOT SOLD SEPARAT

1/2" x 3 1/2" NC Hex. Bolt

1шт.

17

NSS

NOT SOLD SEPARAT

1/2" x 5 " NC Hex .Bolt

1шт.

18

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair. Pin

1шт.

19

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

21

NSS

NOT SOLD SEPARAT

1/2" NC Lock Nut

1шт.

22

14051003

NUT

5/8" NF Slotted Hex.

1шт.

23

NSS

NOT SOLD SEPARAT

5/8" SAE Washer

1шт.

24

NSS

NOT SOLD SEPARAT

1/2" Standard Washer

1шт.

25

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

26

NSS

NOT SOLD SEPARAT

3/8" Lock Washer

1шт.

27

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

28

02323001

BUSHING

7/8" (Heat Treated)

1шт.

29

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" x 3 5/8"

1шт.

30

02333350

PLATE

Spacer for 1 1/4" Shank (2 Needed Per Shank)

1шт.
