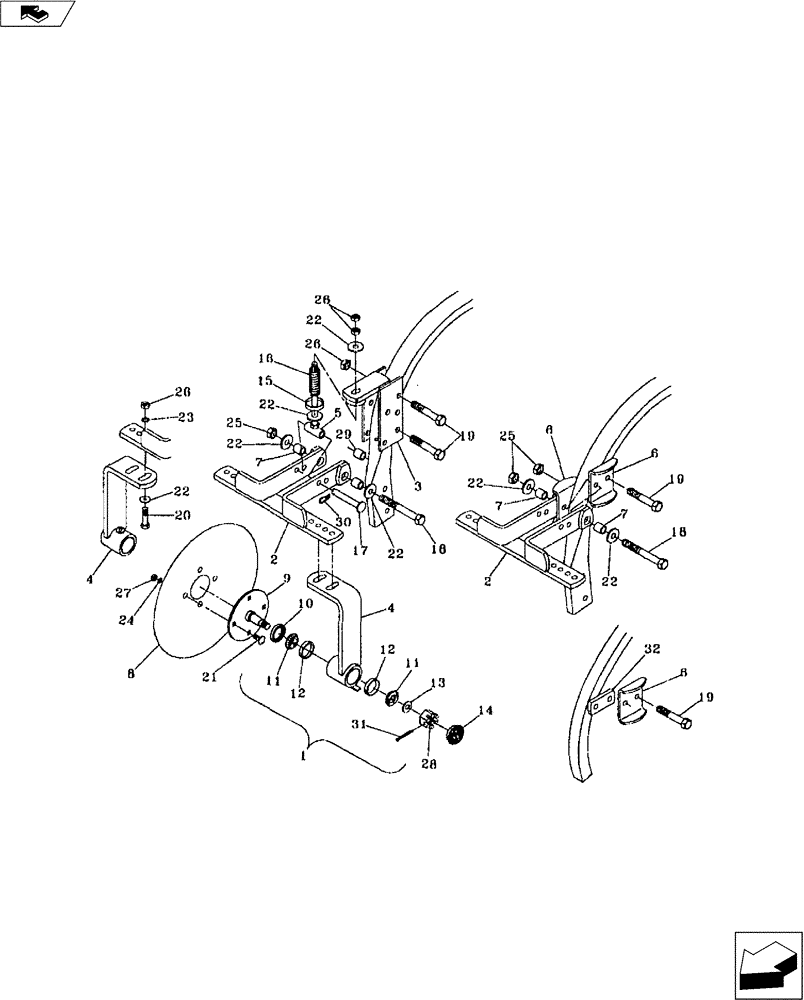

Запчасти Case IH FERTILIZER (75.200.11) - REVERSIBLE SPRING DOUBLE DISC SEALER (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
02400100
PLOW DISC
Spring Disc (1"x 2" Or 1-1/4" Shank) (Not Shown)
1шт.
1
02325100
(Straight Arm)
2шт.
1
02327000
RH (Previous Style)
1шт.
1
02325000
LH (Previous Style)
1шт.
2
02335300
FRAME
Sealer
1шт.
3
02334000
BRACKET
1шт.
4
02325150
ARM
Sealer With Cups
1шт.
5
02333500
SUPPORT
1/2" dia. Sprg Pivot Bolt
1шт.
6
02335120
SPACER
Shank (1" x 2" Shank)
2шт.
7
02323100
BUSHING
2шт.
8
33551445
PLOW DISC
14" Blade
2шт.
9
04666410
(Straight Arm)
2шт.
9
02329000
(Previous Style)
1шт.
10
21931000
SEAL
CR10035
2шт.
11
21870750
BEARING CONE
3/4" Bore LM11949
4шт.
12
21881780
BEARING CUP
1.781" OD LM11910
4шт.
13
17110001
WASHER
5/8" SAE
4шт.
14
28400400
DUST CAP
Grease
2шт.
15
17506010
CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk
1шт.
16
24120701
COMPRESSION SPRING
1шт.
17
14808291
CLEVIS PIN,12.7mm OD x 127.45mm L
1/2" x 3-5/8 EL
1шт.
18
NSS
NOT SOLD SEPARAT
1/2" x 5-1/2" NC Hex. Bolt Gd.5
1шт.
19
NSS
NOT SOLD SEPARAT
1/2" x 3-1/4" NC Hex. Bolt Gd.5
2шт.
20
NSS
NOT SOLD SEPARAT
1/2" x 1-3/4" NC Hex. Bolt Gd.5
4шт.
21
NSS
NOT SOLD SEPARAT
3/8" x 3/4" NC Carriage Bolt
8шт.
22
NSS
NOT SOLD SEPARAT
1/2" Flat Washer
6шт.
23
NSS
NOT SOLD SEPARAT
1/2" Lock Washer
4шт.
24
NSS
NOT SOLD SEPARAT
3/8" Lock Washer
8шт.
25
NSS
NOT SOLD SEPARAT
1/2" Hex. Lock Nut
2шт.
26
NSS
NOT SOLD SEPARAT
1/2" Hex. Nut
8шт.
27
NSS
NOT SOLD SEPARAT
3/8" Hex. Nut
8шт.
28
14051003
NUT
5/8" NF Slotted
2шт.
29
02333410
TUBE,0.546" ID, 0.84" OD, 2" Length
Pipe (One Needed Per Reversible Sealer When Used On Tru-Trakr)
1шт.
29
02330100
PLOW DISC
Regular Sealer (1" x 2" Shank) (Available Spring 1995)
1шт.
30
NSS
NOT SOLD SEPARAT
1/8" x 2" Hair Pin
1шт.
31
NSS
NOT SOLD SEPARAT
1/8" x 1 " Cotter Pin
1шт.
32
02321000
PLATE
Spacer (1-1/4" Coil Shank) = 2 Needed For 1-1/4" Coil Sh.
1шт.
Выбрано товаров: 37
