(75.200.08) - LIQUID KNIFE KIT

Запчасти Case IH FERTILIZER (75.200.08) - LIQUID KNIFE KIT (75) - SOIL PREPARATION

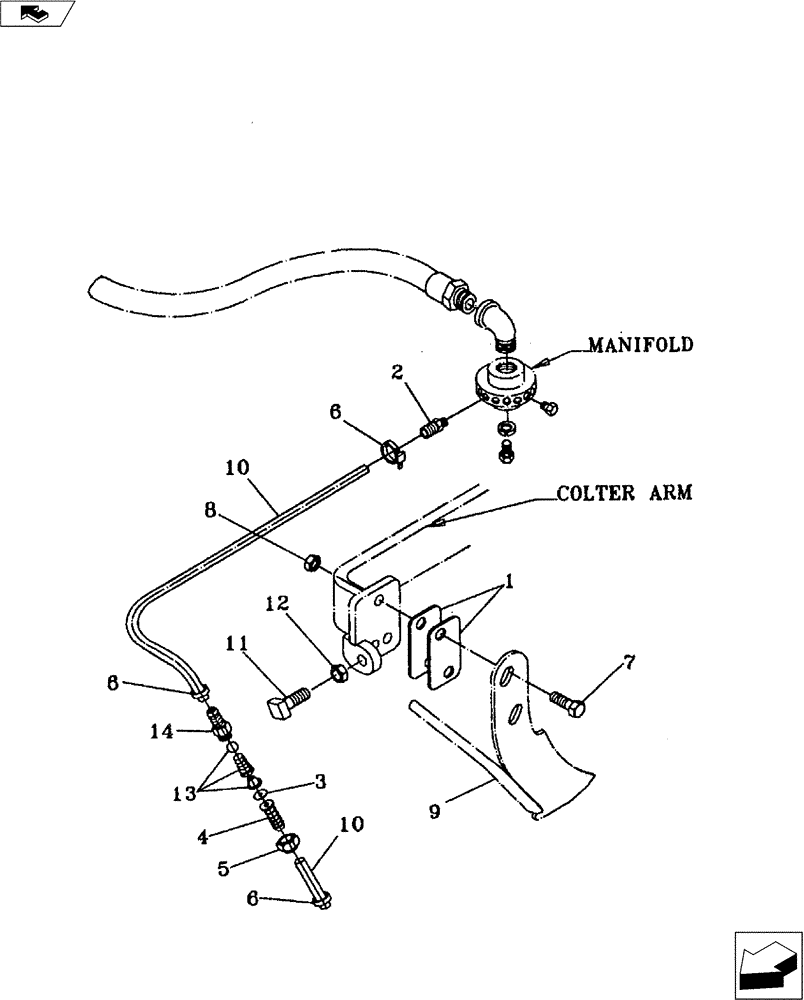

Схема запчастей Case IH FERTILIZER - (75.200.08) - LIQUID KNIFE KIT (75) - SOIL PREPARATION
9
6
8
10
4
2
7
6
12
1
8
13
3
10
14
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

05310002

Knife Hardware Kit, Includes Ref. 1-2, 4-9, 11-14 (Order Orifice Plate Using Chart) (Not Shown)

1шт.

05310003

Knife Hardware Bag, Includes Ref. 1, 7-8, 11-12 (Does Not Include Knife) (Not Shown)

1шт.

05310008

Includes Ref. 4-6, 13-14 (Not Shown)

1шт.

1

05310110

SHIM

16 Gauge

1шт.

1

05310120

SHIM

10 Gauge

1шт.

2

15040251

HYD CONNECTOR

1/4" NPT 3/8" Hose Barb

1шт.

3

NSS

NOT SOLD SEPARAT

Orifice Plate

1шт.

4

34600007

PIPE FITTING

3/8" Hose Barb

1шт.

5

34600009

CAP

Nozzle

1шт.

6

22510600

1шт.

7

NSS

NOT SOLD SEPARAT

5/8" x 2" NC Hex. Bolt

1шт.

8

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

9

33607014

KNIFE

1/4" 3/8" Tube (Heat Treated)

1шт.

10

NSS

NOT SOLD SEPARAT

3/8" Hose

1шт.

11

16812084

SET SCREW,3/4" - 10 x 2"

3/4" NC x 2" Sq. HD Set

1шт.

12

NSS

NOT SOLD SEPARAT

3/4" Jam Nut

1шт.

13

34600004

1шт.

14

34600019

NOZZLE HOLDER

T-J Body With Hose Barb

1шт.
