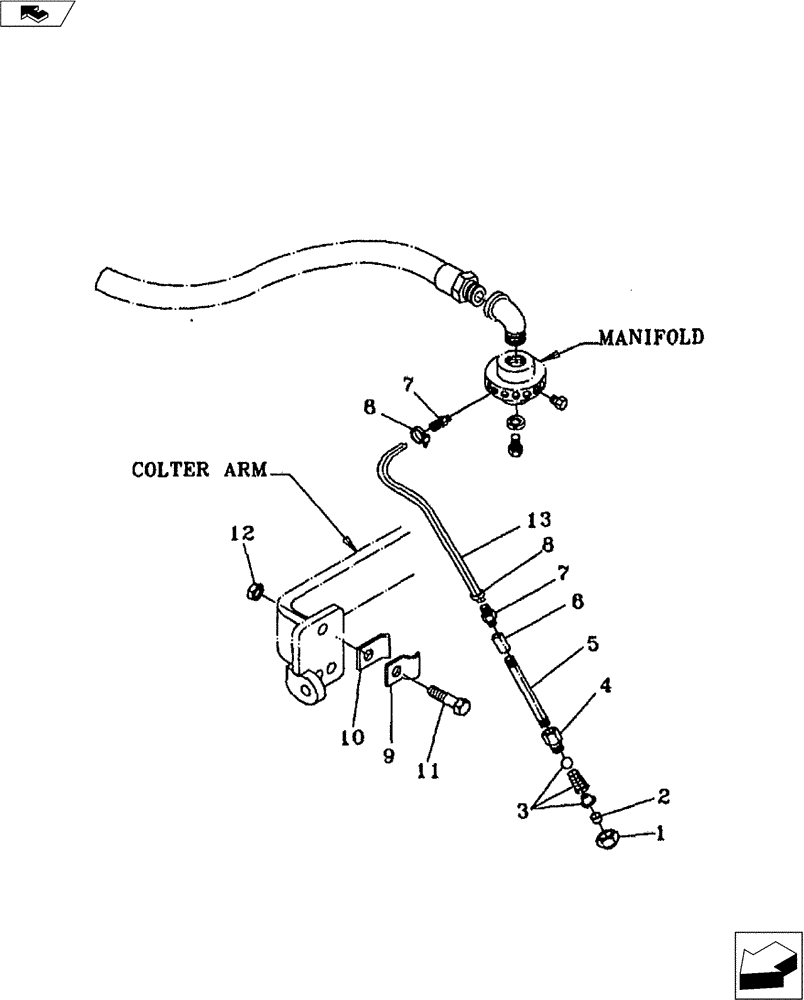

Запчасти Case IH FERTILIZER (75.200.07) - LIQUID STRAIGHT STREAM INJECTOR (75) - SOIL PREPARATION

05310001

Injector Kit with Hardware, Includes Ref. 1, 3-12 (Order Nozzle Using Chart) (Not Shown)

1шт.

1

34600009

CAP

Nozzle

1шт.

2

NSS

NOT SOLD SEPARAT

Nozzle

1шт.

3

34600004

1шт.

4

34600018

NOZZLE HOLDER

Body 1/4" NPTF

1шт.

5

15010253

PIPE

1/4" x 6" Lg.

1шт.

6

15070251

FLUID COUPLING

1/4" NPT

1шт.

7

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

8

22510600

1шт.

9

05310130

CLAMP

Outer

1шт.

10

05310140

CLAMP

Inner

1шт.

11

NSS

NOT SOLD SEPARAT

5/8" x 2" NC Hex. Bolt

1шт.

12

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" Hose

1шт.
