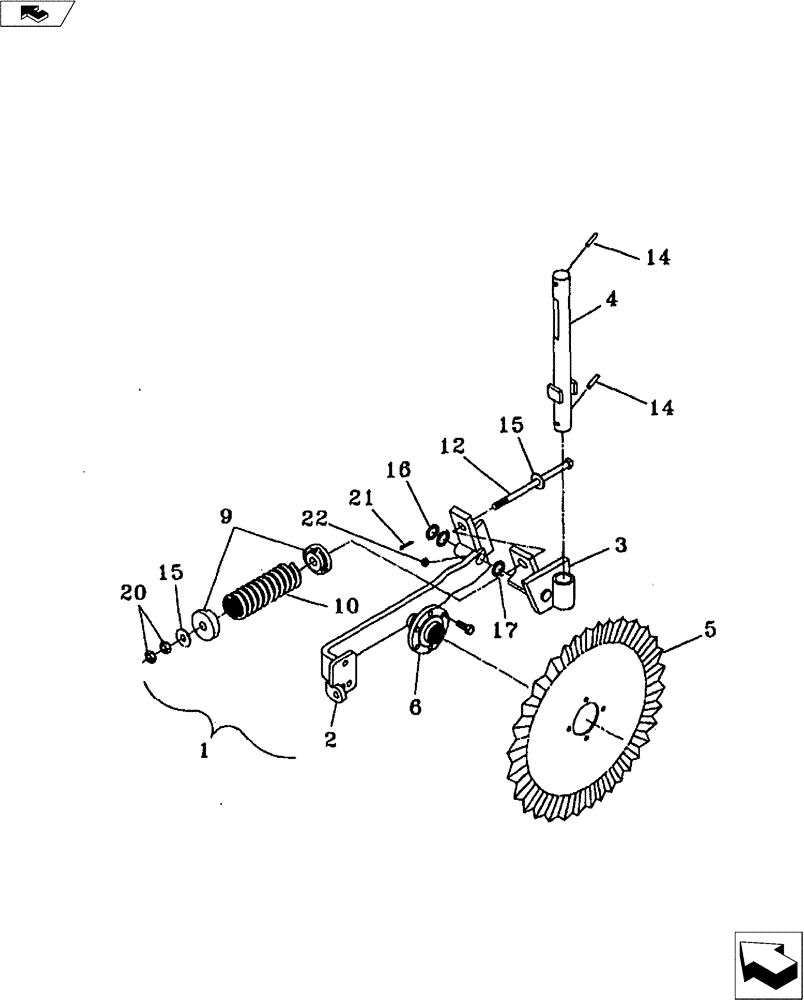

Запчасти Case IH FERTILIZER (75.200.06) - LIQUID 20" COLTER (75) - SOIL PREPARATION

05310015

COULTER

20" Assembly With Rippled Blade Less Mounting (Knife or Injector Kit Are Ordered Separately) (Not Shown)

1шт.

1

05310100

COULTER

Arm Assy. 20"

1шт.

2

05310200

ARM

Colter 20"

1шт.

3

04663200

BAR ASSY.

Colter Pivot

1шт.

4

04663150

BAR ASSY.

Colter Shaft 20" (1 3/4" x 21 3/4")

1шт.

5

33502043

PLOW DISC

Colter Blade 20" Rippled

1шт.

6

28063321

HUB ASSY.

633 Spindle

1шт.

9

20090050

HOLDER

Spring Casting

1шт.

10

24143880

COMPRESSION SPRING

1шт.

12

16010440

5/8" NC X 11" Hex. Bolt

1шт.

14

14741412

ROLL PIN

7/16" X 2 1/2"

1шт.

15

17411012

WASHER

5/8" X 1-1/4" Thick

1шт.

16

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1 1/4" Machine 14 gauge

1шт.

17

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1 1/4" Machine 10 gauge

1шт.

20

NSS

NOT SOLD SEPARAT

5/8" NC Heavy Hex. Nut

1шт.

21

NSS

NOT SOLD SEPARAT

1/4" x 1 1/2" cotter pin

1шт.

22

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
