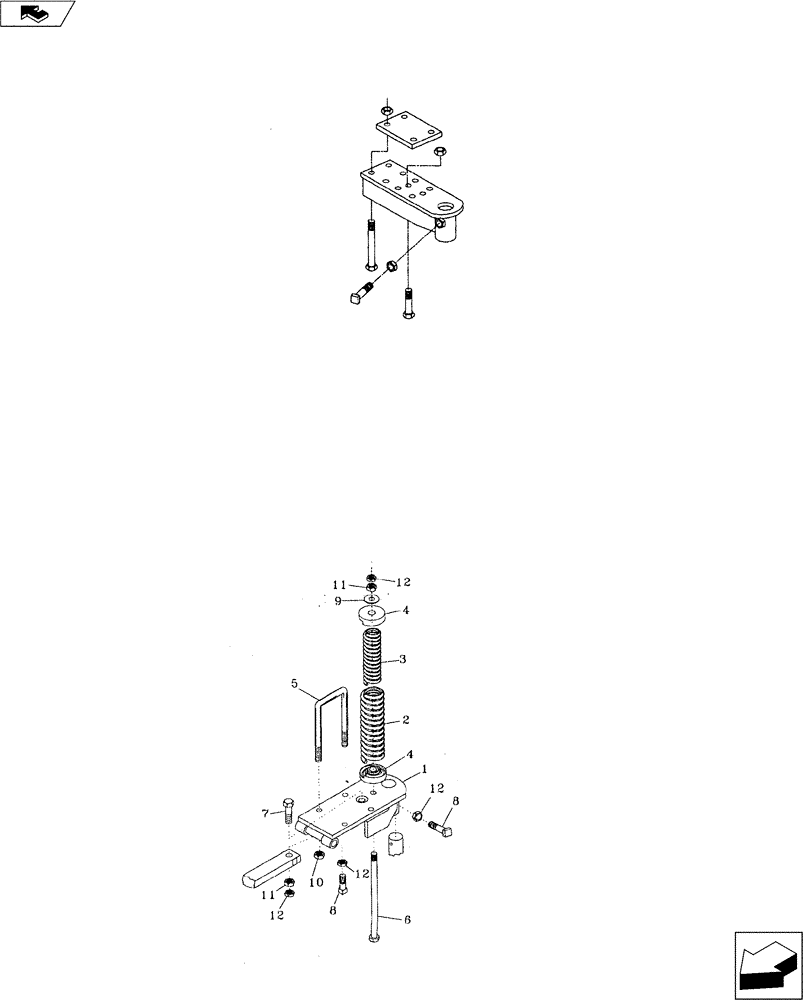

Запчасти Case IH FERTILIZER (75.200.05) - 20" COLTER-SHANK MOUNTINGS (75) - SOIL PREPARATION

04663550

Rigid C-S Mounting Complete 4x4 (1 3/4" shaft)

1шт.

04663510

1шт.

02365140

PLATE

Top

1шт.

04660018

1шт.

04663500

Rigid C-S Mount Only 4x6 (1 3/4" shaft)

1шт.

04663510

1шт.

02365140

PLATE

Top

1шт.

04660015

1шт.

04665060

SPRING

H.D. C-S Mounting complete 4x4 (1 3/4'' Shaft) (Not Shown)

1шт.

04665003

Includes U-bolts, Roll Pins and Set Screws (Not Shown)

1шт.

04665070

MOUNTING PARTS

H.D. Spring C-S Complete 4x6 (1 3/4" Shaft) (Not Shown)

1шт.

04665004

Includes U-bolts, Roll pins and Set Screws (Not Shown)

1шт.

1

04665510

MOUNTING PARTS

C-S Spring

1шт.

2

24162504

COMPRESSION SPRING

4-1/16"O .D.

1шт.

3

24143812

COMPRESSION SPRING

2-1/2" O.D.

1шт.

4

20090120

SPRING BOX

Double Casting

1шт.

5

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

1шт.

5

16310050

U-BOLT

5/8" x 4" x 8" U-Blt

1шт.

6

16901257

3/4" x 14-1/8" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/4" x 3" NC HHCS Gd. 5

1шт.

8

NSS

NOT SOLD SEPARAT

3/4" x 2" Sq. Hd. Set Screw

1шт.

9

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

10

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

11

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

1шт.

12

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

1шт.
