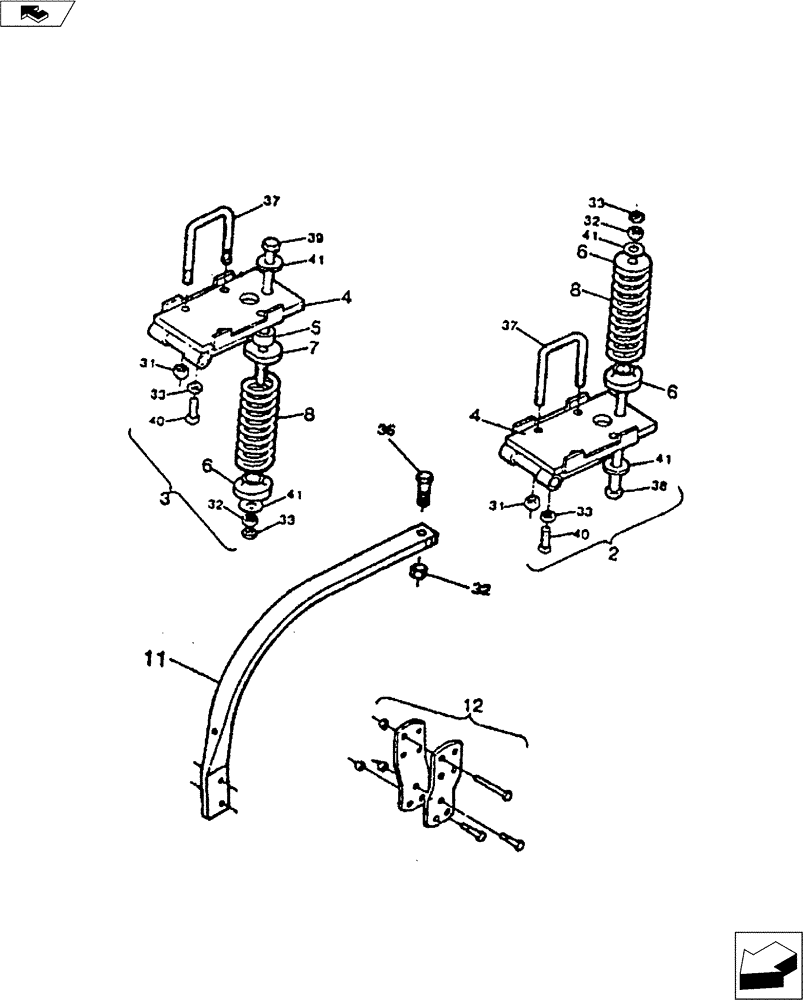

Запчасти Case IH FERTILIZER (75.200.01) - SPRING 1" X 2" SIDE MOUNT SHANK ASSEMBLY (75) - SOIL PREPARATION

2

09400085

SPRING

Shank Mounting with Hardware 4x4

1шт.

2

P0466019

4x6

1шт.

3

04644000

KIT

Inverted Spring Mounting with Hardware 4x4

1шт.

4

09430100

SPRING

Shank Pivot

1шт.

5

02340101

1шт.

6

20090050

HOLDER

Spring Casting

1шт.

7

20090052

HOLDER

Spring Casting (Machined)

1шт.

8

24156205

COIL SPRING

Compression

1шт.

11

33020017

SHANK

1"x 2" Side Mount

1шт.

11

09400087

MOUNTING PARTS

Standard Spring

1шт.

11

04660006

CONVERSION PACKAGE

U-Bolt Hardware 4x4

1шт.

11

04660013

4x6

1шт.

12

02419000

BRACKET

Knife with Hardware For Non-Side Mount 1" x 2" Shanks

1шт.

31

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

1шт.

36

16012125

BOLT

3/4" x 3" NC Gd. 5

1шт.

37

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2" (4x4)

1шт.

37

16310050

U-BOLT

5/8" x 4" x 8" (4x6)

1шт.

38

16901253

BOLT

3/4" x 13" NC Hex.

1шт.

39

16901256

3/4" x 14-1/8" NC Hex. Bolt

1шт.

40

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2" NC Square Head Set

1шт.

41

NSS

NOT SOLD SEPARAT

3/4" Standard Washer

1шт.
