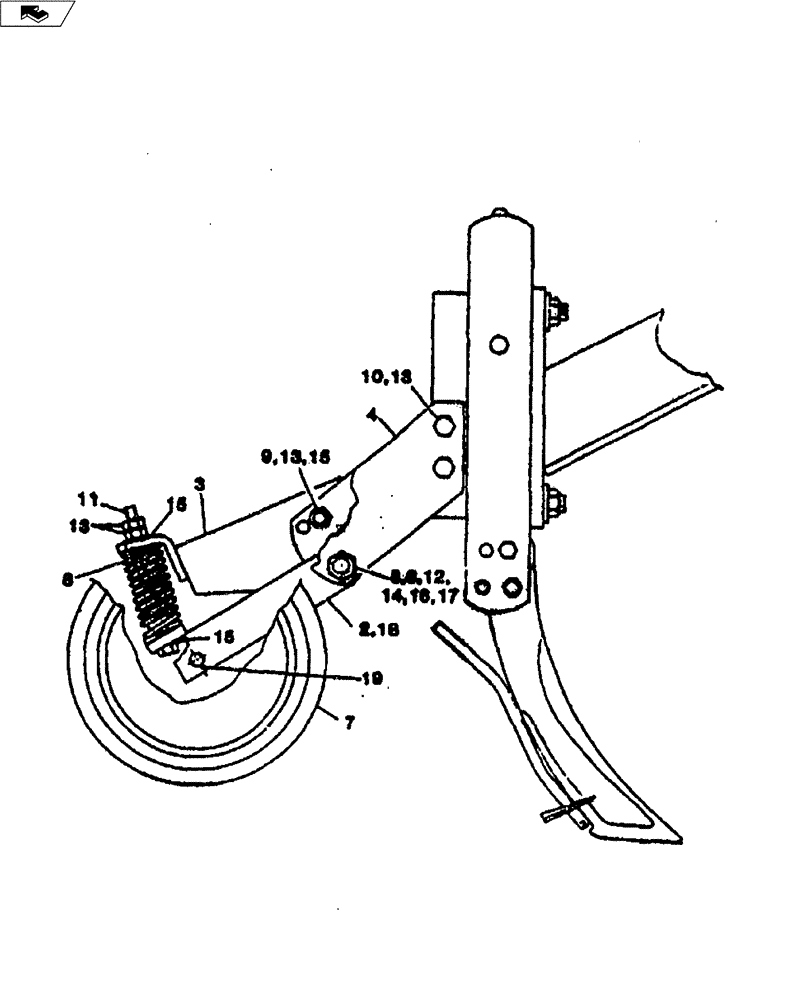

Запчасти Case IH FERTILIZER (75.100.01) - PACKER WHEEL (75) - SOIL PREPARATION

02336000

(Not Shown)

1шт.

2

02336100

1шт.

3

02336200

1шт.

4

02336300

BRACKET

Mounting

1шт.

5

02336400

TUBE

Bushing - 2.1/16" long

1шт.

6

02336500

PLASTIC-RUBBER TUBE

Bushing - 7/32" long

1шт.

7

10004120

WHEEL,304.8mm OD x 101.6mm W

Packer Assy.

1шт.

7

10004122

TYRE/TIRE

Rubber

1шт.

8

24120703

COMPRESSION SPRING

1/2" longer Fall 1994

1шт.

9

NSS

NOT SOLD SEPARAT

1/2" x 1 1/4" NC Capscrew Grade 5

1шт.

10

NSS

NOT SOLD SEPARAT

1/2" x 3" NC Capscrew Grade 5

1шт.

11

NSS

NOT SOLD SEPARAT

1/2" x 6 1/2" NC Capscrew Grade 5

1шт.

12

NSS

NOT SOLD SEPARAT

3/4" x 4" NC Capscrew Grade 5

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

14

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

15

NSS

NOT SOLD SEPARAT

1/2" Std. Washer

1шт.

16

NSS

NOT SOLD SEPARAT

3/4" Std. Washer

1шт.

17

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

1шт.

18

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

19

NSS

NOT SOLD SEPARAT

1/4" x 5/16" Set Screw

1шт.

19

21831000

SPINDLE

with Bearing

1шт.

19

18531001

DECAL

DMI Logo 1 7/8"

1шт.
