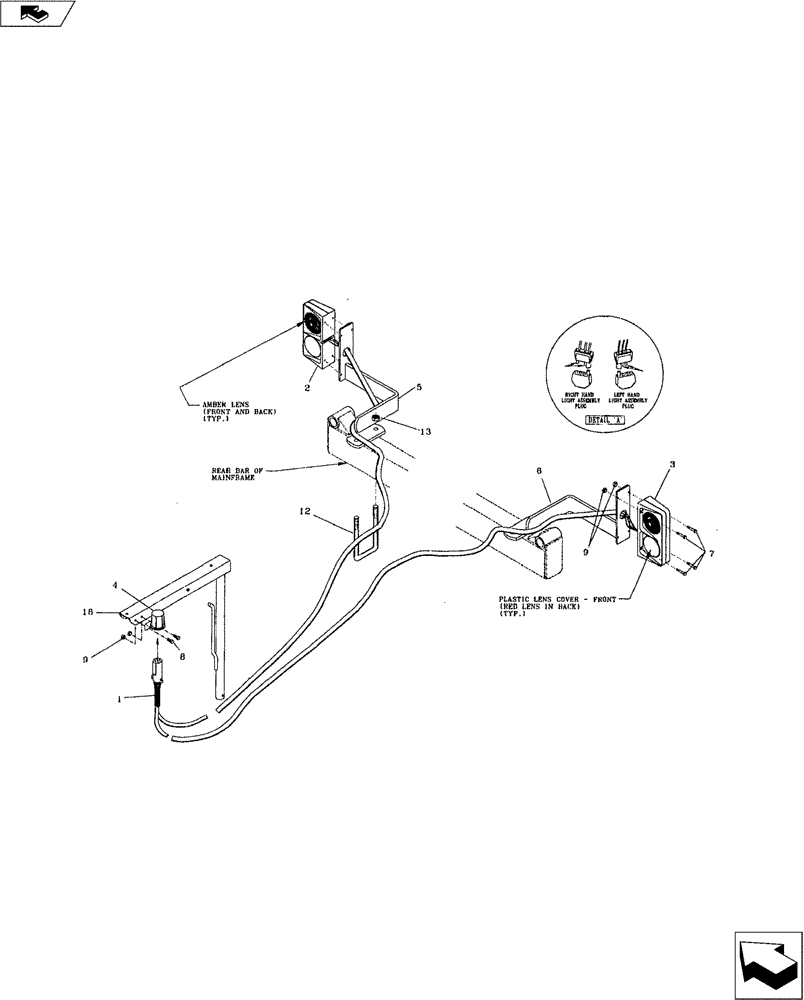

Запчасти Case IH FERTILIZER (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

P02372000

Models 3100 and 3250 (Not Shown)

1шт.

1

27601291

WIRE HARNESS

Models 3100 and 3250

1шт.

1

27601271

WIRE HARNESS

Models 4300 and 5300

1шт.

2

27601212

LIGHT ASSY.

Fixture, RH

1шт.

3

27601213

LIGHT ASSY.

Fixture, LH

1шт.

4

27601214

HOLDER

Plug Storage Container

1шт.

5

04681710

BRACKET

Light RH

1шт.

6

04681720

BRACKET

Light LH

1шт.

7

16004055

BOLT

1/4" x 1-1/4" NC Hex., Gd. 5

1шт.

8

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC Hex.Bolt

1шт.

9

NSS

NOT SOLD SEPARAT

1/4" NC Hex.Lock Nut

1шт.

10

NSS

NOT SOLD SEPARAT

11" Plastic Hose Tie (Not Shown)

1шт.

11

NSS

NOT SOLD SEPARAT

28" Plastic Hose Tie (Not Shown)

1шт.

12

16310050

U-BOLT

5/8" x 4" x 8"

1шт.

13

NSS

NOT SOLD SEPARAT

5/8"NC Hex Lock Nut

1шт.

14

27601215

LENS

Replacement - Amber (Not Shown)

1шт.

15

27601216

LENS

Replacement - Red (Not Shown)

1шт.

16

04681800

(Not Included In Light Kit)

1шт.
