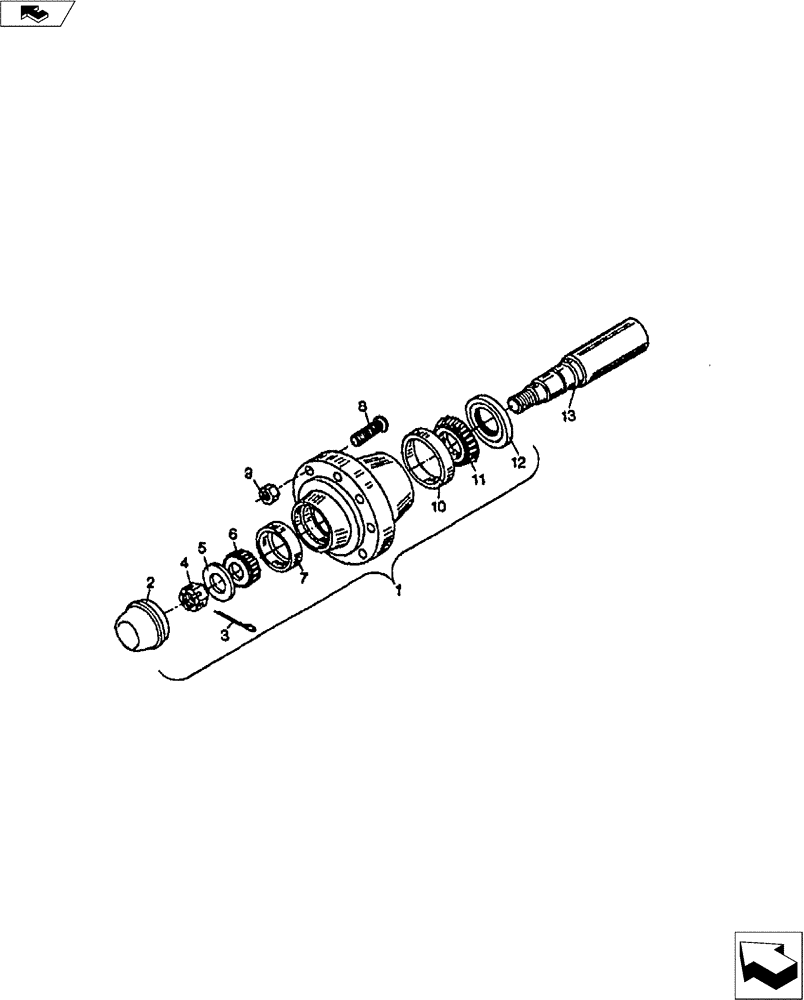

Запчасти Case IH FERTILIZER (44.100.07) - 50-8 HUB & SPINDLE (44) - WHEELS

28050886

(Not Shown)

1шт.

1

28150800

HUB ASSY.

50-8 8-Bolt

1шт.

2

28460800

DUST CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

1 " NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

1 " SAE Washer

1шт.

6

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.62" Bore Timken LM501349

1шт.

7

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D. Timken LM501310

1шт.

8

16410087

STUD

5/8" NF x 2-1/4" Wheel

1шт.

9

14081003

WHEEL NUT

5/8" NF Wheel

1шт.

10

21883265

ROLLER BEARING,2" ID x 3.22 mm OD x 0.8652 mm

3.22" O.D. Timken JLM104910

1шт.

11

21872005

ROLLER BEARING,50 mm ID

2.00" O.D. Bore Timken LM104948

1шт.

12

21932501

OIL SEAL

2.50" I.D. x 3.25" O.D. CR 24909

1шт.

13

28350805

STUB AXLE/STEERING S

1шт.
