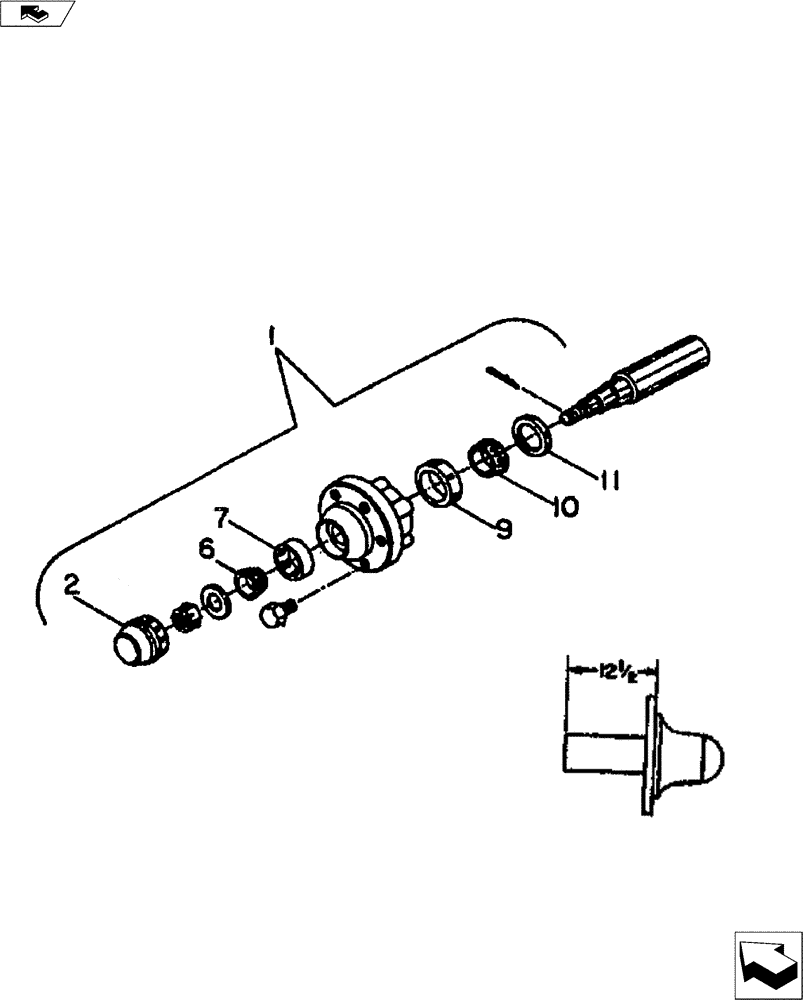

Запчасти Case IH FERTILIZER (44.100.06) - HUB & SPINDLE ASSEMBLY 888 6-BOLT (44) - WHEELS

1

28188800

HUB ASSY.

888 6-Bolt

1шт.

1

28688900

HUB ASSY.

889 6-Bolt (Used With Brakes)

1шт.

1

28088801

HUB ASSY.

Spindle (Spindle is 12 5/8" Long)

1шт.

1

28088802

HUB ASSY.

Spindle (13 1/2")

1шт.

1

28088821

HUB ASSY.

Spindle (Spindle is 12.1 2" Long)

1шт.

1

28388801

SPINDLE

2 1/8" OD x 12.1 2"

1шт.

2

28477700

HUB CAP

Hub

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore (Timken LM67048)

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" OD (Timken LM67010)

1шт.

8

16408053

SPECIAL BOLT

1/2" x 1" Lug (Not Shown)

1шт.

9

21931630

SEAL

1.63" ID x 2.57" OD (CR 16289)

1шт.

10

21882480

BEARING, CUP

2.48" OD (Timken JL69310)

1шт.

11

21871496

BEARING, CONE

1.50" Bore (Timken JL69349)

1шт.
