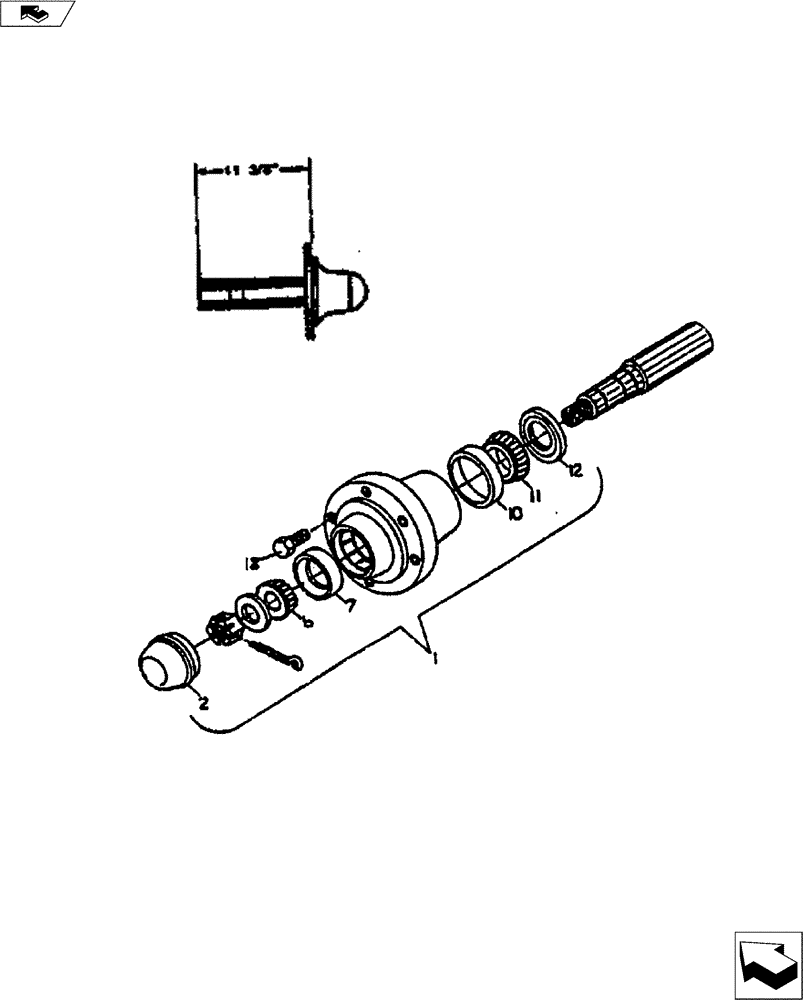

Запчасти Case IH FERTILIZER (44.100.05) - HUB & SPINDLE ASSEMBLY 803 6-BOLT (44) - WHEELS

1

28180300

HUB ASSY.

803 6-Bolt

1шт.

1

28681300

HUB ASSY.

813 8-Bolt

1шт.

1

28080301

6-Bolt (803)

1шт.

1

28581351

HUB ASSY.

Spindle Assy. 8-Bolt (813)

1шт.

2

28480300

CAP

Hub

1шт.

6

21871381

BEARING CONE

1.375" Bore (Timken 25877) (Not Shown)

1шт.

7

21882880

BEARING CUP

2.875" (Timken 25821)

1шт.

10

21883270

BEARING CUP

3.270" (Timken 25520) (Not Shown)

1шт.

11

21871800

BEARING CONE

1.800" Bore (Timken 25590) (Not Shown)

1шт.

12

21932000

SEAL

2.00" OD x 3.625" OD (CR 521430)

1шт.

13

16409053

SPECIAL BOLT

9/16" NF x 1 1/8" NF Wheel 6-bolt (803) (Not Shown)

1шт.

13

16409093

STUD

9/16" NF x 2 1/8" Drive In 8-bolt (813) (Not Shown)

1шт.
