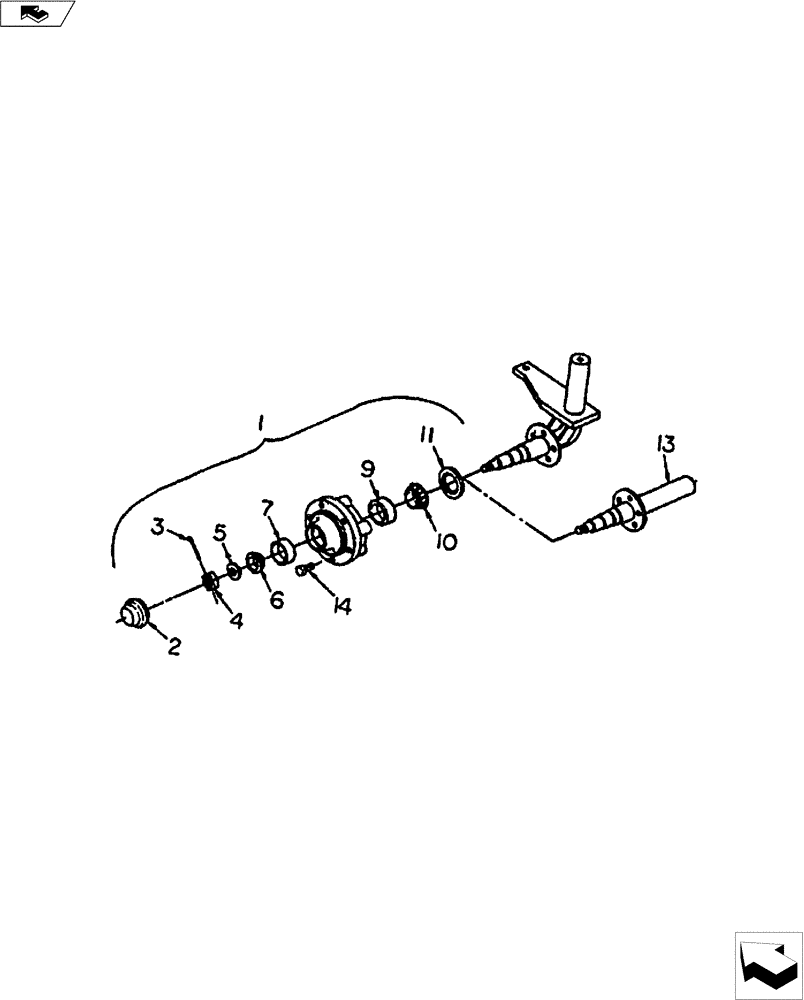

Запчасти Case IH FERTILIZER (44.100.04) - HUB & SPINDLE ASSEMBLY 798 6-BOLT (44) - WHEELS

1

28679800

HUB ASSY.

798 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1 1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Hex Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" Standard Flat Washer

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore (Timken LM67048)

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" OD (Timken LM67010)

1шт.

9

21882561

BEARING, CUP,1.5005" ID x 2.5635" OD x 0.71"

2.56" OD (Timken LM29710)

1шт.

10

21871500

ROLLER BEARING,1.5" ID x 2.56" OD x 0.71"

1.5" Bore (Timken LM29749)

1шт.

11

21931630

SEAL

1 5/8" ID (CR 16289)

1шт.

13

28377701

SPINDLE

777 Less Flange (Fits 798 Hub)

1шт.

14

16408053

SPECIAL BOLT

1/2" x 1" NF Wheel

1шт.
