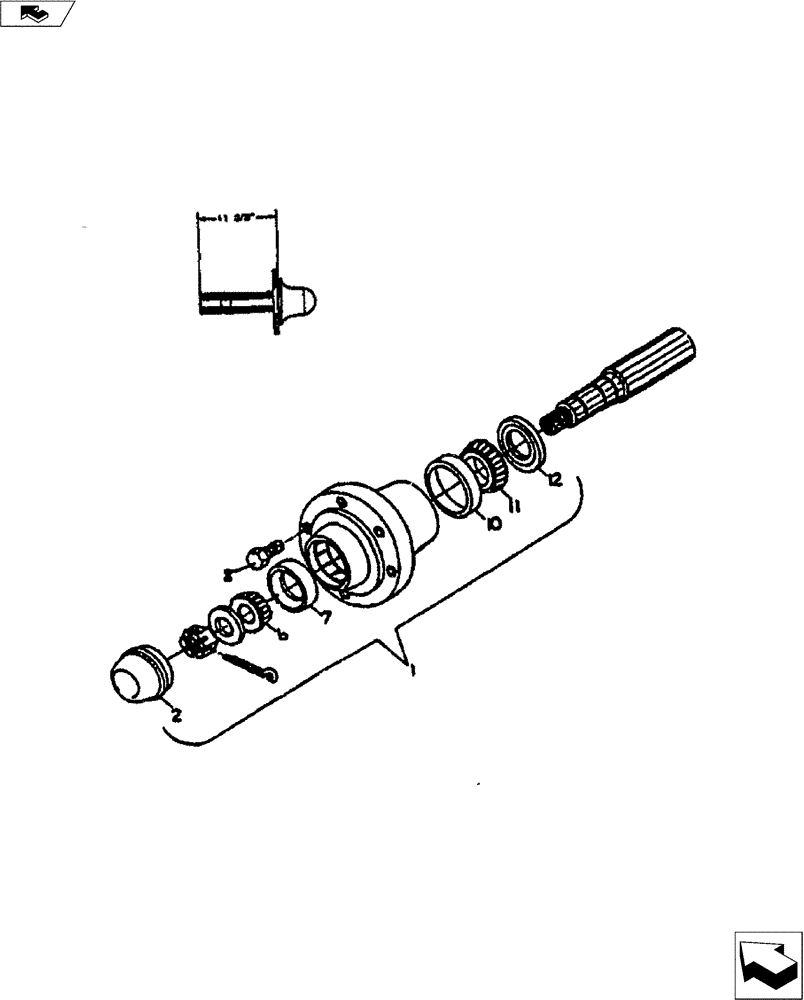

Запчасти Case IH FERTILIZER (44.100.02) - HUB & SPINDLE ASSEMBLY 709 6-BOLT (44) - WHEELS

1

28170900

HUB ASSY.

709 6-Bolt

1шт.

1

28070931

HUB ASSY.

Spindle

1шт.

2

28477700

HUB CAP

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore (Timken LM67048)

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" OD (Timken LM67010)

1шт.

8

16408053

SPECIAL BOLT

1/2" NF x 1" Lug

1шт.

10

21882560

BEARING, CUP

2.56" OD (Timken LM48510)

1шт.

11

21871380

BEARING CONE

1.38" Bore (Timken LM48548)

1шт.

12

21931500

OIL SEAL

1.50" ID x 2.62" OD (CR 15190)

1шт.
