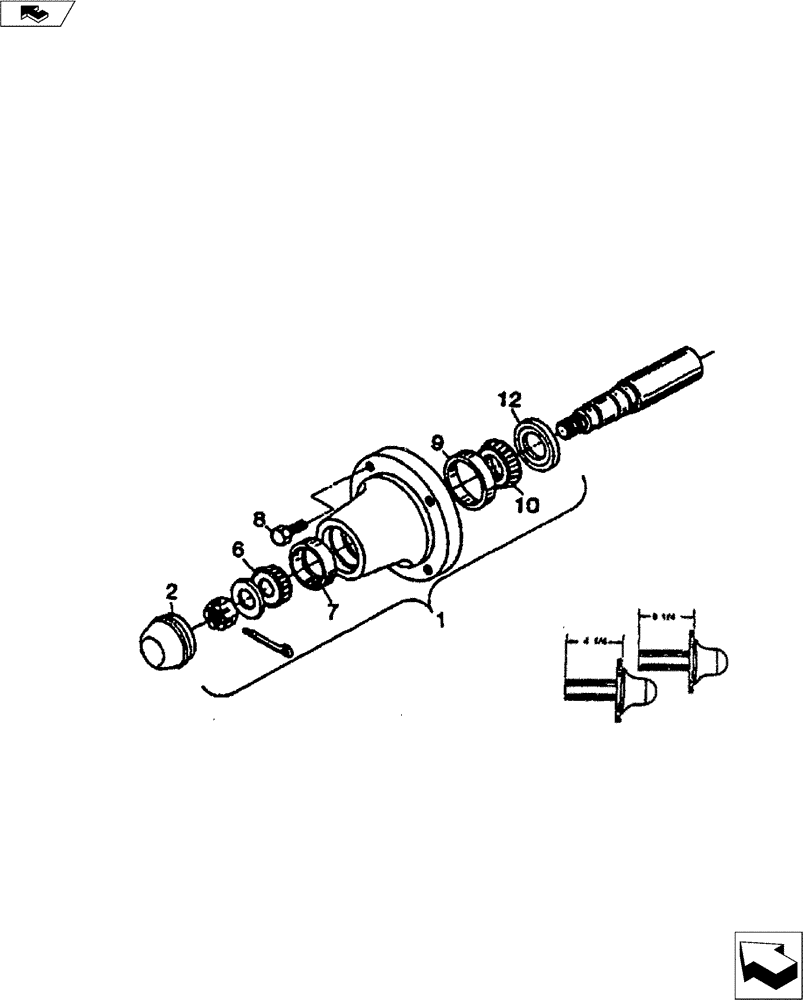

Запчасти Case IH FERTILIZER (44.100.01) - HUB & SPINDLE ASSEMBLY 633 4-BOLT (44) - WHEELS

1

28163300

HUB ASSY.

633 4-Bolt (Gauge Wheel)

1шт.

1

28163310

HUB ASSY.

633 4-Bolt (Colter)

1шт.

1

28063301

(Spindle Is 6 1/4"Long) (Gauge Wheel)

1шт.

1

28063321

HUB ASSY.

Spindle (Spindle Is 4 1/2" Long) (Colter)

1шт.

1

28363311

AXLE

Colter Spindle only (4 1/2" Long)

1шт.

2

28463300

HUB CAP

1шт.

6

21870750

BEARING CONE

0.75" Bore (Timken LM11949)

1шт.

7

21881780

BEARING CUP

1.78" (Timken LM11910)

1шт.

8

16408053

SPECIAL BOLT

1/2" x 1 " Tapered Lug (Gauge Wheel)

1шт.

8

S0000210

BOLT

1/2" x 1 1/4" Flat Head Lug (Colter)

1шт.

9

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 OD (Timken LM67010)

1шт.

10

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore (Timken LM67048)

1шт.

12

21931501

SEAL ASSY.

1.50" ID x 2.33" OD (CR 14975)

1шт.
