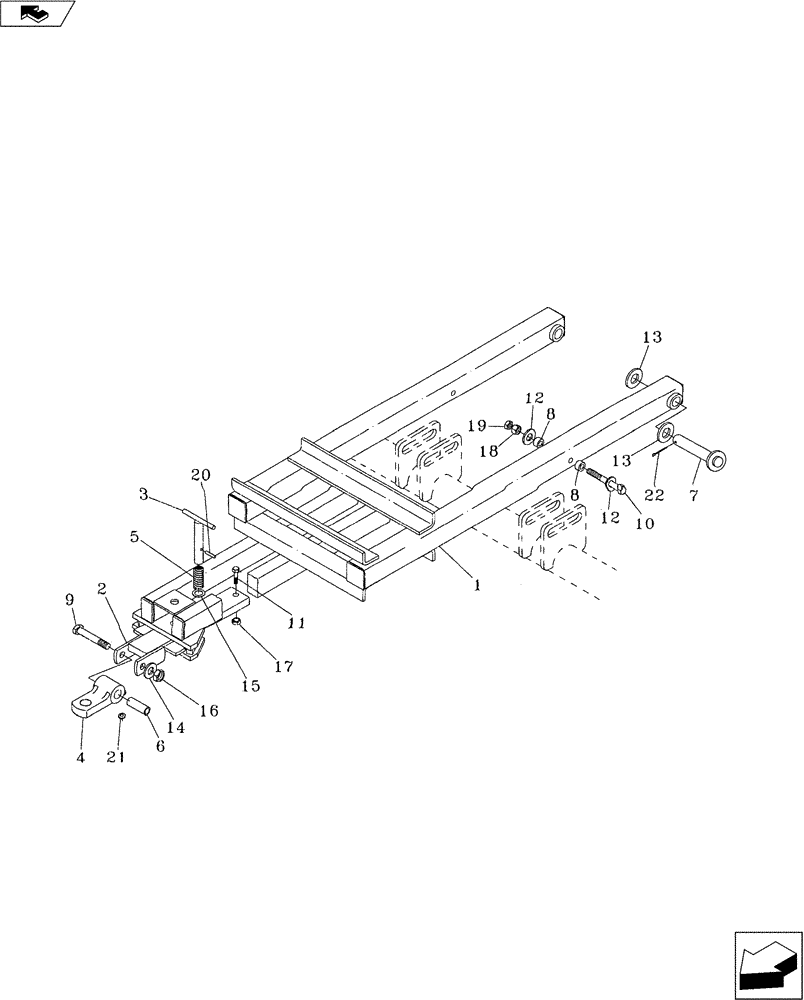

Запчасти Case IH FERTILIZER (39.110.07) - REAR HITCH NARROW (39) - FRAMES AND BALLASTING

04667000

4250,4300,5250 0r 5300 (Not Shown)

1шт.

1

04667100

1шт.

2

04667200

BAR ASSY.

Tow

1шт.

3

14816450

SPECIAL PIN

1"O.D.

1шт.

4

20092085

CLEVIS

Single

1шт.

5

24111200

SPRING

Compression

1шт.

6

44009370

SPACER

Bushing

1шт.

7

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4" Dia.

1шт.

8

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

1шт.

9

16901420

SPECIAL BOLT

7/8" x 5-1/2" NC

1шт.

10

16010245

BOLT

5/8" x 6" NC Gd.5

1шт.

11

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" NC Bolt

1шт.

12

17411012

WASHER

11/16'' I.D. x 1/4" Thk.

1шт.

13

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" I.D. Machine 14 Ga.

1шт.

14

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" I.D. Thk.

1шт.

15

17616020

WASHER

1" Machine Bushing 14 Ga.

1шт.

16

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Lock Nut

1шт.

17

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

18

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

19

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

20

14740812

PIN

1/4"x 1-1/2" Lg. Roll

1шт.

21

15302005

FITTING

1/8" NPT Self Tap Grease Zerk

1шт.

22

NSS

NOT SOLD SEPARAT

1/4 x 2" Cotter Pin

1шт.
