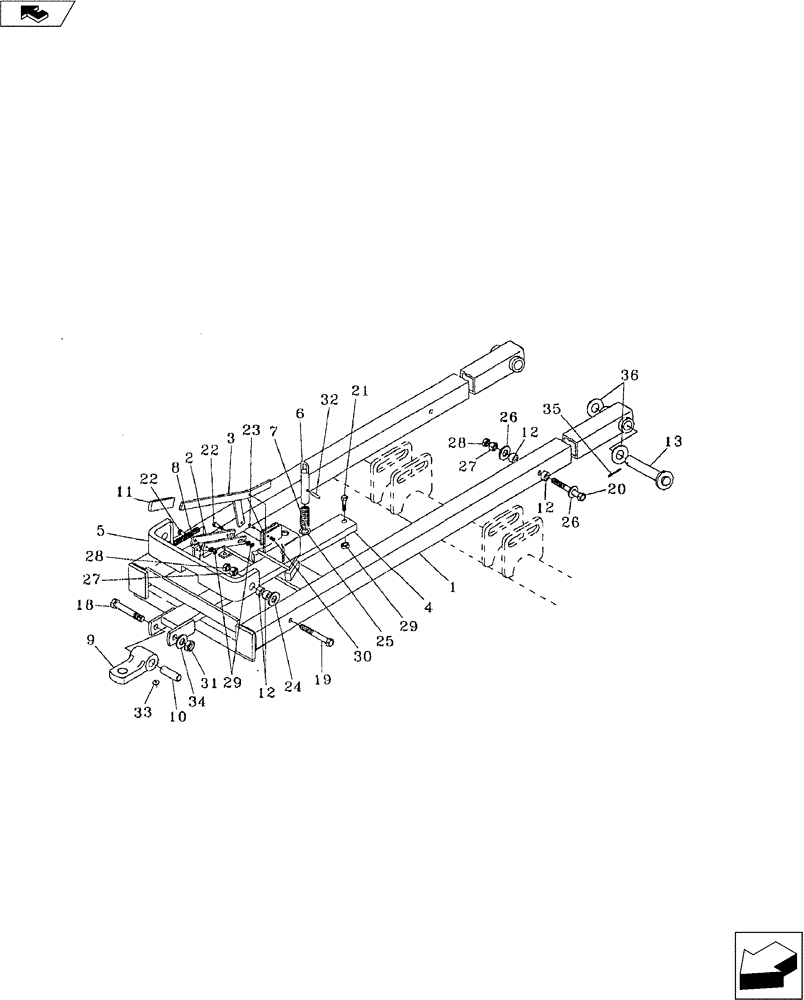

Запчасти Case IH FERTILIZER (39.110.06) - REAR HITCH STANDARD (39) - FRAMES AND BALLASTING

04664000

HITCH

Standard Rear Assembly For 4250, 4300, 5250 or 5300 (Not Shown)

1шт.

1

04664100

1шт.

2

04664130

LINK ASSY.

1шт.

3

04664200

HANDLE

1шт.

4

04664400

BAR

Tow

1шт.

5

04664300

STOP

Draw Bar

1шт.

6

14816167

HITCH PIN

1шт.

7

24111200

SPRING

Compression

1шт.

8

24312000

COIL SPRING

Extension

1шт.

9

20092085

CLEVIS

Single

1шт.

10

44009370

SPACER

Bushing

1шт.

11

30011100

HOLDER

Vinyl Grip

1шт.

12

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

1шт.

13

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4 Dia.

1шт.

18

16901420

SPECIAL BOLT

7/8" x 5-1/2" NC Hex.

1шт.

19

16010225

SCREW

5/8" x 5-1/2" NC Hex. Gd. 5

1шт.

20

16010245

BOLT

5/8" x 6" NC Hex. Gd. 5

1шт.

21

16010075

BOLT

5/8" x 1-3/4'' NC Hex. Gd. 5

1шт.

22

NSS

NOT SOLD SEPARAT

3/8" x 2" NC Hex. Bolt

1шт.

23

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" NC Hex. Bolt

1шт.

24

17618030

BUSHING

1-1/8" Mach. Bushing 18 Ga.

1шт.

25

17616020

WASHER

1" Mach. Bushing 14 Ga.

1шт.

26

17411012

WASHER

11/16" I.D. x 1/4" Thk.

1шт.

27

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.

28

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Jam Nut

1шт.

29

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

30

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Lock Nut

1шт.

32

14740812

PIN

1/4" x 1-1/2" Lg. Roll

1шт.

33

15302005

FITTING

1/8" NPT Self Tap Zerk

1шт.

34

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" I.D. Thk.

1шт.

35

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

1шт.

36

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Mach., 14 Ga.

1шт.
