(39.110.04) - REAR HITCH ASSEMBLY

Запчасти Case IH FERTILIZER (39.110.04) - REAR HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

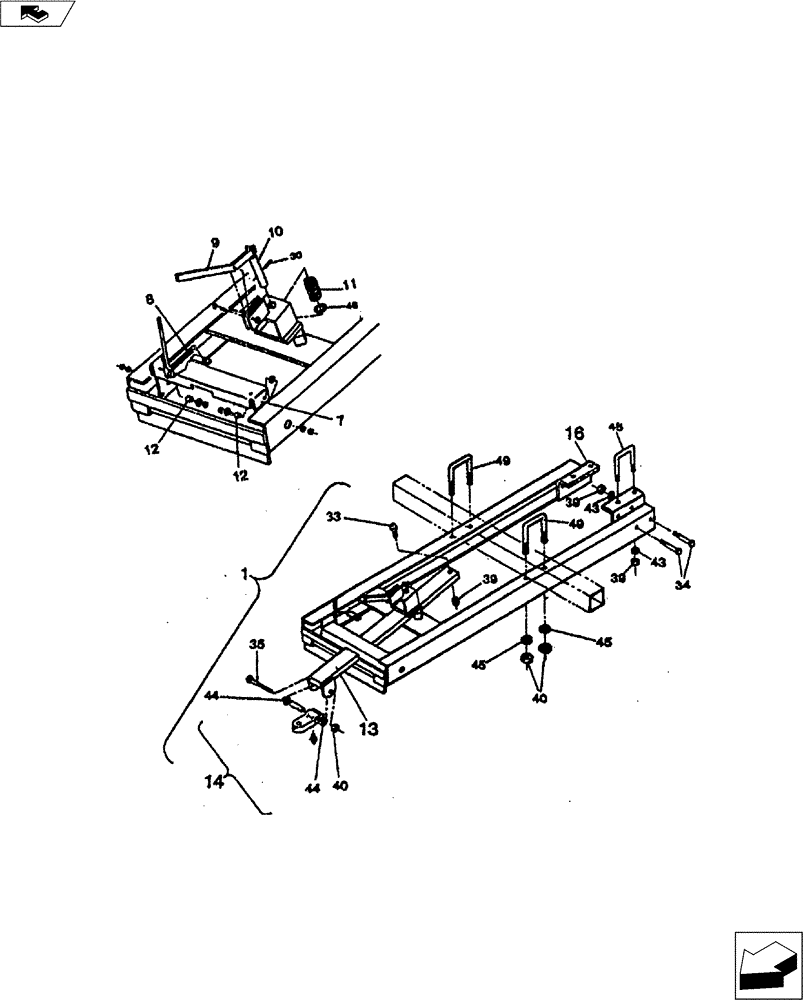

Схема запчастей Case IH FERTILIZER - (39.110.04) - REAR HITCH ASSEMBLY (39) - FRAMES AND BALLASTING
11
16
9
44
12
44
30
10
45
40
43
49
1
33
12
8
45
34
48
40
43
14
7
45
39
49
13
39
39
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

04619001

(Includes Mounting Hardware) Mounts On A PT3,3200,4100, or 420011 (Not Shown)

1шт.

7

02355300

STOP LOCK

1шт.

8

24312000

COIL SPRING

Extension

1шт.

9

47051000

BAR

Hitch Lever

1шт.

10

14816166

HITCH PIN,25.4mm OD x 127mm L

1шт.

11

24111200

SPRING

Compression

1шт.

12

44003801

BUSHING

1шт.

13

02355200

DRAWBAR

Tow

1шт.

14

02134100

TOW BAR

Hitch Casting with Bushing

1шт.

16

04619010

RH

1шт.

17

04619020

LH

1шт.

30

NSS

NOT SOLD SEPARAT

1/4" Dia. x 1 1/2" Roll Pin

1шт.

34

NSS

NOT SOLD SEPARAT

5/8" x 4" NC Hex.Bolt Gd 5

1шт.

35

NSS

NOT SOLD SEPARAT

3/4" x 5" NC Hex.Bolt Gd 5

1шт.

39

NSS

NOT SOLD SEPARAT

5/8" NC Hex.Nut

1шт.

40

NSS

NOT SOLD SEPARAT

3/4" NC Hex.Nut

1шт.

43

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

1шт.

44

NSS

NOT SOLD SEPARAT

3/4" Standard Washer

1шт.

45

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

1шт.

46

17616020

WASHER

1 " Machinery Bushing

1шт.

47

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

48

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5 1/2"

1шт.

49

16312220

U-BOLT

3/4" x 4" x 5 1/2"

1шт.
