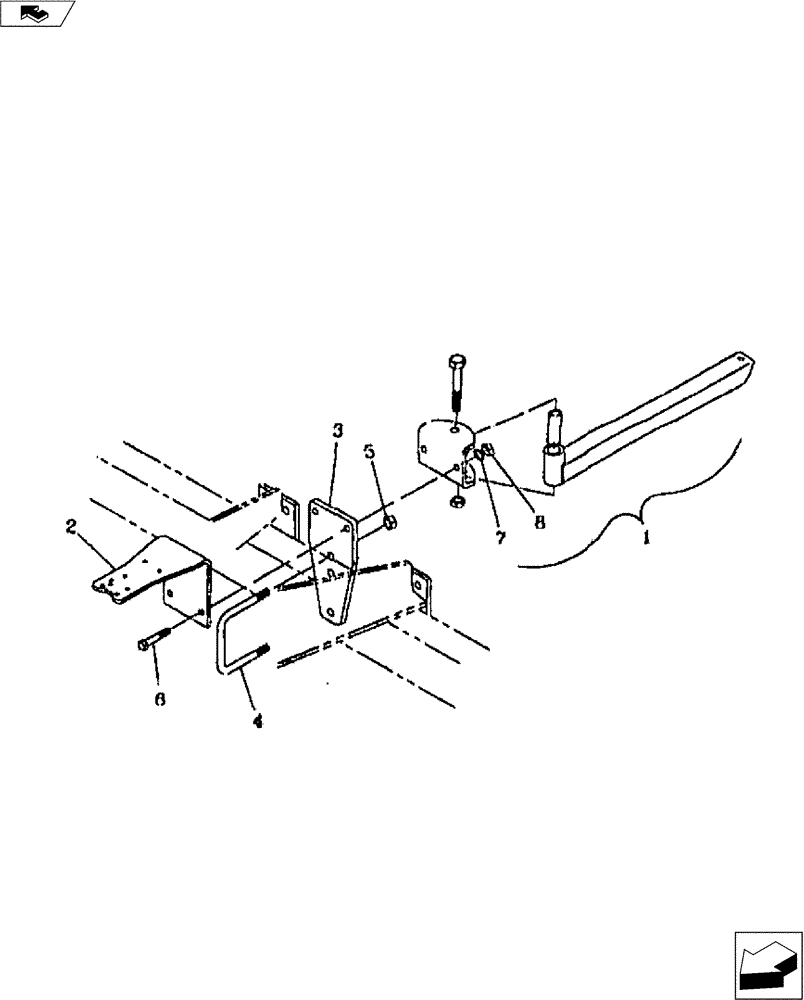

Запчасти Case IH FERTILIZER (35.850.01) - SAFETY-SWING QUICK COUPLER ARM WITH REGULATOR STAND (35) - HYDRAULIC SYSTEMS

02390100

MOUNTING PARTS

Regulator and Q-C Stand Complete 4x4 4x6 (Not Shown)

1шт.

1

04660300

MOUNTING PARTS

Extension

1шт.

2

04660310

STAND

Regulator

1шт.

3

02391118

PLATE

Regulator Stand Bracket

1шт.

4

16312220

U-BOLT

3/4" x 4" x 5-1/2"

1шт.

4

16312240

U-BOLT

3/4" x 6" x 5-1/2"

1шт.

5

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

6

NSS

NOT SOLD SEPARAT

5/8" x 2-1/2" NC Hex. Bolt, Grade 5

1шт.

7

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

1шт.

8

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

1шт.
