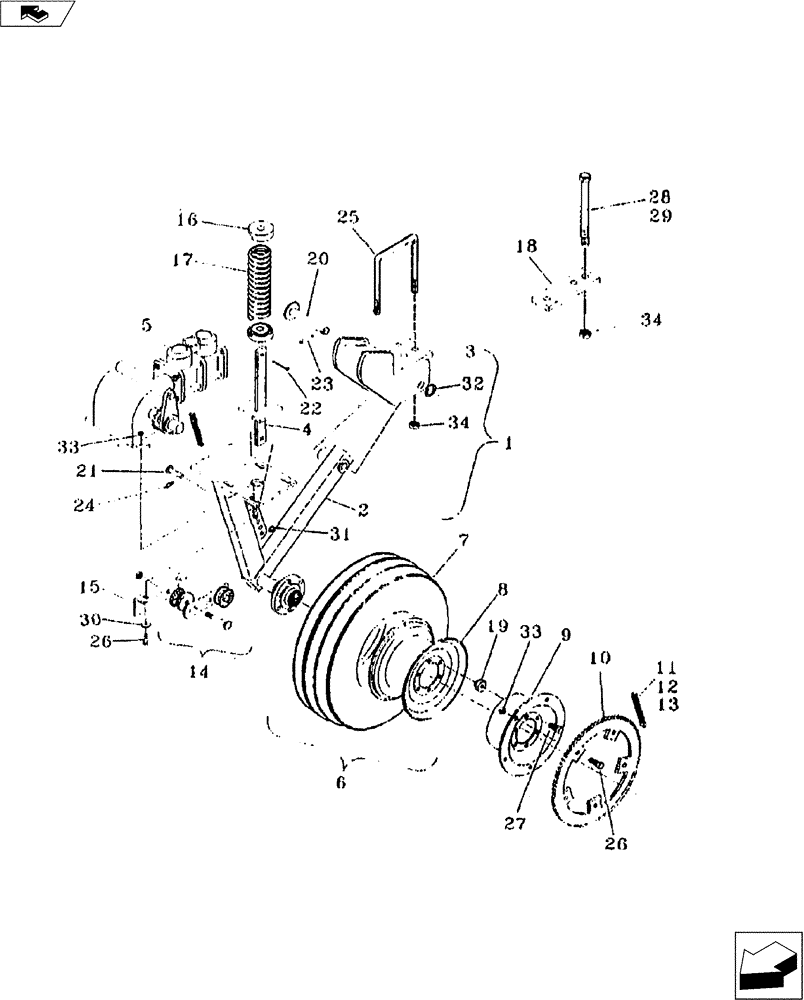

Запчасти Case IH FERTILIZER (29.200.01) - GROUND DRIVE ASSEMBLY (29) - HYDROSTATIC DRIVE

P0530014

(LM4455) 4x4 or 4x6 (Not Shown)

1шт.

1

P0530015

4x4 or 4x6

1шт.

1

05300006

For 6x4,4x4, and 4x6 Tube

1шт.

2

05300830

Spindle

1шт.

3

05300820

MOUNTING PLATE

1шт.

4

05300840

SPRING

Linkage

1шт.

5

34120001

FEED PUMP

John Blue LM4455

1шт.

5

34120003

REPAIR KIT

Gasket for John Blue LM4455

1шт.

6

10005146

LAND WHEEL

7.50 x 14 4 Ply Tire Assy.

1шт.

7

11007142

TIRE TUBE

7.50 x 14 4 Ply

1шт.

8

10105146

LAND WHEEL

14 x 5

1шт.

9

34120010

ADAPTER

Hub Sprocket 4 Bolt

1шт.

10

34120011

SPROCKET

Roller Chain 50-60T

1шт.

11

21205010

50 x 76.62"

1шт.

12

21215010

LIFT LINK

Single Connecting 50

1шт.

13

21215012

LIFT LINK

Single Offset 50

1шт.

14

34120012

IDLER

Single Spool with Bracket

1шт.

15

05300850

BRACKET

Idler

1шт.

16

20090110

SPRING BOX

Holder Casting

1шт.

17

24143900

SPRING

Compression

1шт.

18

05300860

1шт.

19

34120013

SPACER

1шт.

20

14816467

1 "OD 5.81 EL

1шт.

21

14808201

CLEVIS PIN

1/2"OD x 2 1/2" EL Pin

1шт.

22

NSS

NOT SOLD SEPARAT

1/2" x 2 1/2" Roll Pin

1шт.

23

NSS

NOT SOLD SEPARAT

1/4" x 1 1/2" Cotter Pin

1шт.

24

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

25

16312220

U-BOLT

3/4" x 4" x 5 1/2" (4x4)

1шт.

25

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 8" (4x6)

1шт.

26

NSS

NOT SOLD SEPARAT

3/8" x 1 3/4" NC Hex. Bolt Gd 5

1шт.

27

NSS

NOT SOLD SEPARAT

1/2" x 1 1/2" NF Hex. Bolt Gd 5

1шт.

28

NSS

NOT SOLD SEPARAT

3/4" x 6 1/2" NC Hex. Bolt Gd 5

1шт.

29

NSS

NOT SOLD SEPARAT

3/4" x 8 1/2" NC Hex. Bolt Gd 5

1шт.

30

NSS

NOT SOLD SEPARAT

3/8" STD Washer

1шт.

31

NSS

NOT SOLD SEPARAT

1/2" STD Washer

1шт.

32

NSS

NOT SOLD SEPARAT

1" STD Washer

1шт.

33

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

34

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.
